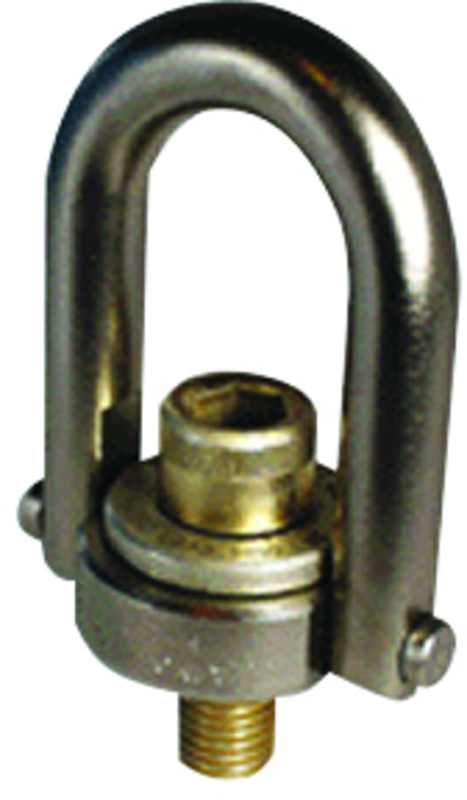

1/2-13 Center Pull Hoist Ring

Item #: SG6923413LC
Manufacturer: Jergens
Mfg #: 23413LC

Technical Specifications:
•Base Diameter: 1.50 •Base Height: 2-3/8 •Brand Name: Jergens •Diameter: .75 •External Radius: 4.78 •Overall Width: 3.52 •Radius: .88 •Rating Load: 2500 lbs •Size: 1/2-13 •Thread Length: 1-1/4 •Torque (ft/lbs): 28 •Type: Center-Pull Standard U-Bar •Weight: 2.5 lbs

Description:
•Center-pull Standard U-Bar Hoist Ring •Full 360 degree Swivel and 180 degree Pivot Action •Rated at 5:1 Strength Factor •Material:Alloy Steel •Finish: Black Oxide (Except Washer) •U-Bar, Bolt, Pins, Base, Washer and Bushing are Magnetic Particle Inspected •Washer: Zinc Plated with Gold colored (in), Clear/Blue (mm) Conversion Coating •Proof Tested to 200% of Rated Load Capacity

Shipping Info:
•Actual Weight - 2.5000
