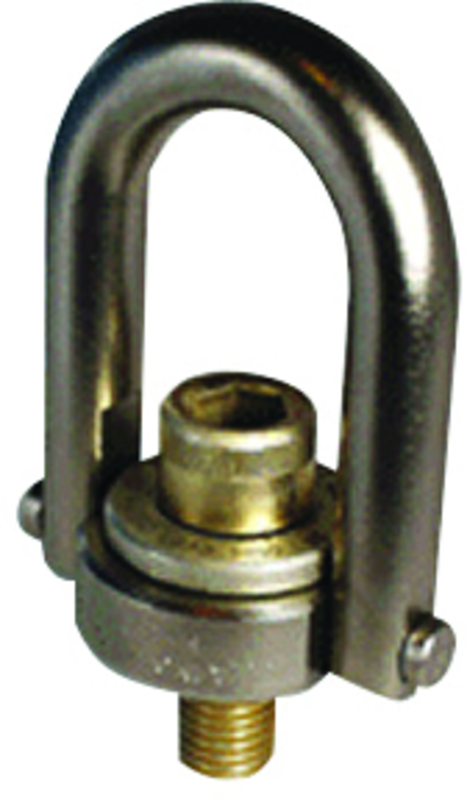

M12 Center Pull Hoist Ring

Item #: SG6723562
Manufacturer: Jergens
Mfg #: 23562

Technical Specifications:
•Base Diameter: 38.1 •Base Height: 108 •Brand Name: Jergens •Diameter: 19.0 •External Radius: 170.7 •Overall Width: 89.4 •Radius: 22.4 •Rating Load: 1050 lbs •Size: M12 x 1.75 •Thread Length: 19.0 •Torque (ft/lbs): 3.8 •Type: Center-Pull Longbar •Weight: 3.0 lbs

Description:
•Full 360 degree swivel and 180 degree pivot action •Rated at 5:1 strength factor •Material: alloy steel •Finish: black oxide (except washer) •U-Bar, bolt, pins, base, washer and bushing are magnetic particle inspected •Washer: zinc plated with Gold Colored (inch), clear/blue (metric) conversion coating

Shipping Info:
•Actual Weight - 3.0000
