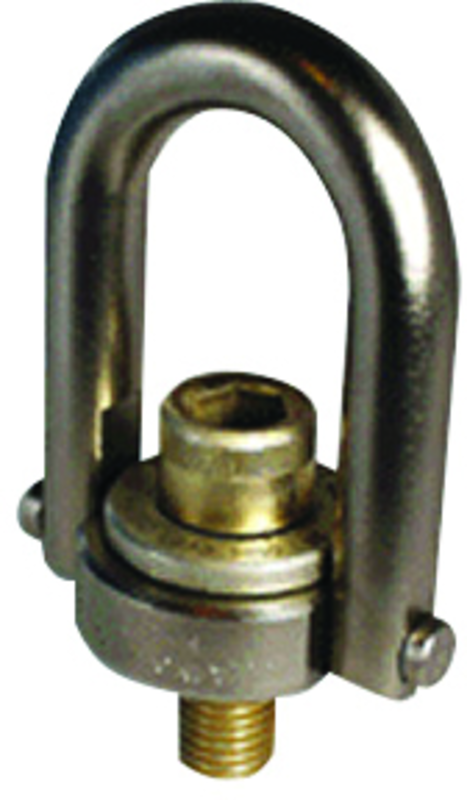

1/4-20 Center Pull Hoist Ring

Item #: SG6723404
Manufacturer: Jergens
Mfg #: 23404

Technical Specifications:
•Base Diameter: .75 •Base Height: 1-15/16 •Brand Name: Jergens •Diameter: .38 •External Radius: 2.67 •Overall Width: 1.84 •Radius: .43 •Rating Load: 550 lbs •Size: 1/4-20 •Thread Length: 1/2 •Torque (ft/lbs): 5 •Type: Center-Pull Standard U-Bar •Weight: .3 lbs

Description:
•Full 360 degree swivel and 180 degree pivot action •Rated at 5:1 strength factor •Material: alloy steel •Finish: black oxide (except washer) •U-Bar, bolt, pins, base, washer and bushing are magnetic particle inspected •Washer: zinc plated with Gold Colored (inch), clear/blue (metric) conversion coating

Shipping Info:
•Actual Weight - .4000
