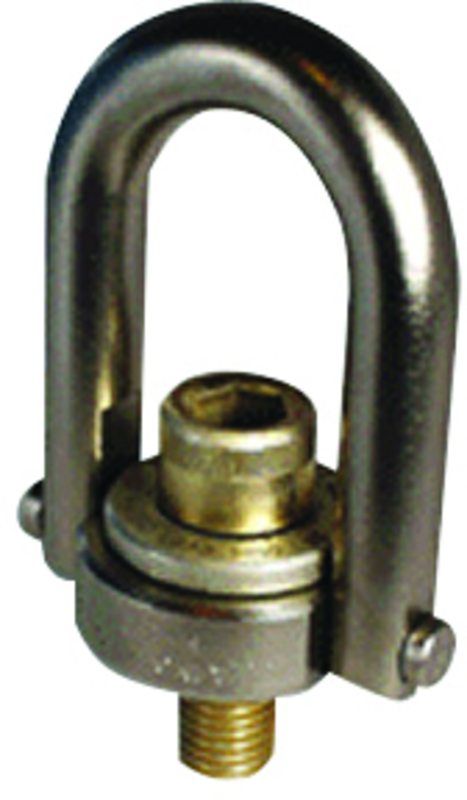

M16 Center Pull Hoist Ring

Item #: SG6723365
Manufacturer: Jergens
Mfg #: 23365

Technical Specifications:
•Base Diameter: 38.1 •Base Height: 56.5 •Brand Name: Jergens •Diameter: 19.0 •External Radius: 123.0 •Overall Width: 89.4 •Radius: 22.4 •Rating Load: 1900 lbs •Size: M16 x 2.0 •Thread Length: 29.0 •Torque (ft/lbs): 8.2 •Type: Center-Pull Envirolox ™

Description:
•Full 360 degree Swivel and 180 degree Pivot action •Rated at 5:1 Strength factor •Material: Alloy Steel •Finish: Envirolox TM Electroless Nickel protective coating •U-Bar, bolt, pins, base, washer and bushing are magnetic particle inspected •Washer: Finish: EnviroloxTM Electroless Nickel protective coating •Proof tested to 200% of rated load capacity

Shipping Info:
•Actual Weight - 2.6000
