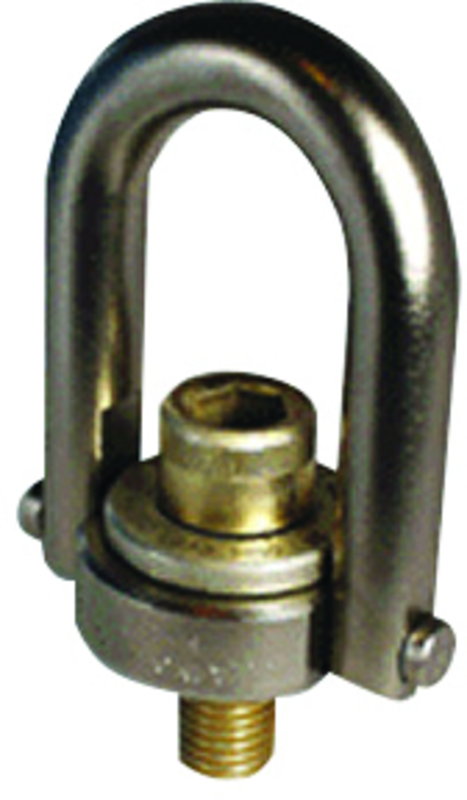

2-4-1/2 Center Pull Hoist Ring

Item #: SG6723335
Manufacturer: Jergens
Mfg #: 23335

Technical Specifications:
•Base Diameter: 4.19 •Base Height: 6-1/8 •Brand Name: Jergens •Diameter: 1.75 •External Radius: 12.47 •Overall Width: 8.55 •Radius: 2.25 •Rating Load: 30000 lbs •Size: 2-4-1/2 •Thread Length: 3-1/8 •Torque (ft/lbs): 800 •Type: Center-Pull Envirolox ™

Description:
•Full 360 degree Swivel and 180 degree Pivot action •Rated at 5:1 Strength factor •Material: Alloy Steel •Finish: Envirolox TM Electroless Nickel protective coating •U-Bar, bolt, pins, base, washer and bushing are magnetic particle inspected •Washer: Finish: EnviroloxTM Electroless Nickel protective coating •Proof tested to 200% of rated load capacity

Shipping Info:
•Actual Weight - 40.0000
