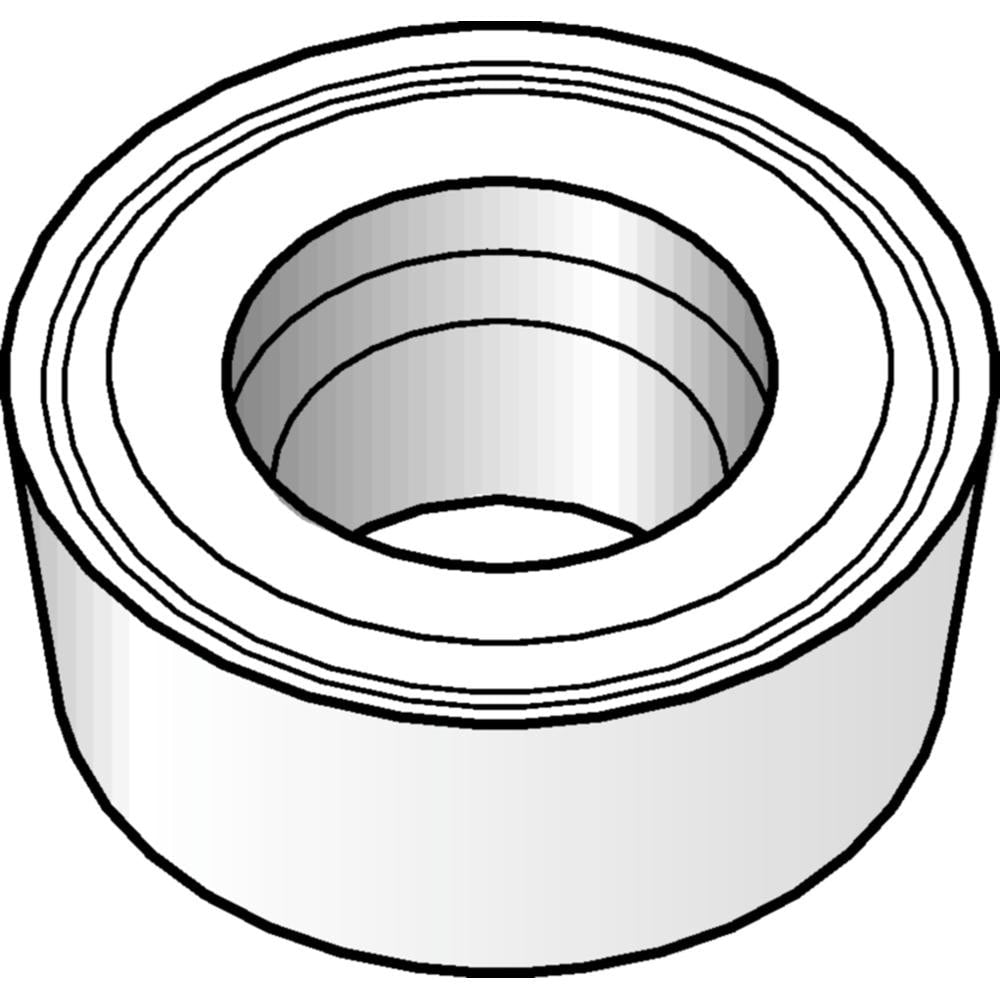

Brand: Widia / Part #: 4170543
Item #: 93300986
Brand: Widia
Model #: 4170543
Product Specifications
| Insert Style | RCMX |
| Insert Shape Code | R |
| Insert Size Code | 2006 |
| Insert Shape | Round |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Manufacturer Grade | WK20CT |
| Corner Radius (Decimal Inch) | 0.3937 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.2559 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Inscribed Circle (Decimal Inch) | 0.7874 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Clearance Code | C |
| Tolerance Code | M |
| Relief Angle | 7.000 |
| Series | RCMX |
| Coating Process | MTCVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.7874 |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | RCMX2006M0T |
| Iso Code | RCMX2006M0T |
| Manufacturers Catalog Number | RCMX2006M0T |
| Cutting Direction | Neutral |
| Coating Classification | Multi-Layered CVD |
| Chip Breaker | None |
| Cutting Edge Style | Chamfered |
| Style | RCMX |
| Width (Decimal Inch - 4 Decimals) | 0.7874 |
| Multi-Use Tool | Yes |
| Full Radius | Yes |
| Multi-Use Application | External Turning; Internal Turning |
