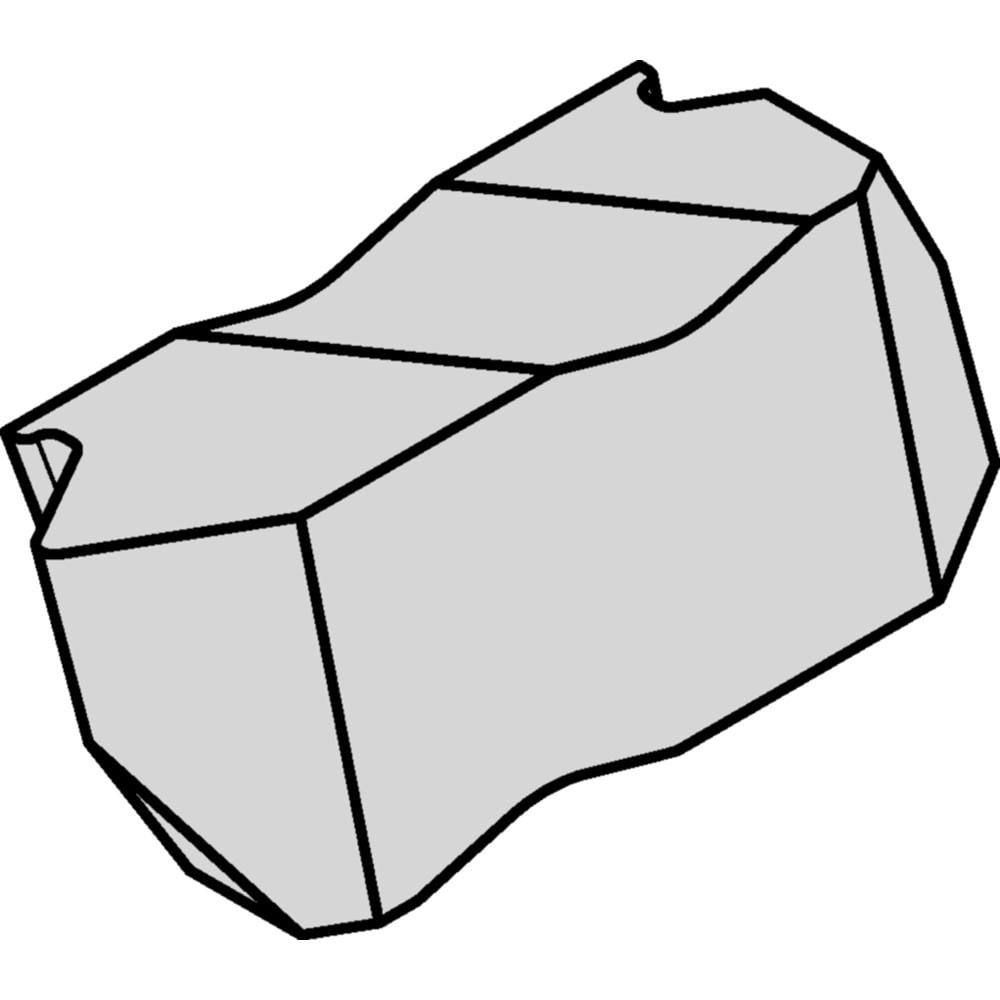

Brand: Widia / Part #: 3636556
Item #: 97264741
Brand: Widia
Model #: 3636556
Product Specifications
| Insert Style | NTC-I |
| Insert Material | Carbide |
| Manufacturer Grade | TN6025 |
| Thread Type | Internal |
| Material Grade | TN6025 |
| Thread Standard | UN |
| Insert Hand | Left Hand |
| Internal Pitch | 0.83 |
| External Pitch | 0.83 |
| Included Angle | 60.00 |
| Chipbreaker | FLAT |
| Series | NTC-I |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0040 |
| Corner Radius (mm) | 0.10 |
| Ansi Code | NTC3L12I |
| Iso Code | NTC3L12I |
| Maximum Corner Radius (Decimal Inch) | 0.0040 |
| Maximum Depth of Cut (Decimal Inch) | 0.1689 |
| Coating Classification | PVD |
| Shape | Irregular |
| Insert Holding Method | Clamp |
| Insert Size | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3440 |
| Finish Coating | AlTiN |
| Coolant Through | No |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.0000 |
