Brand: Widia / Part #: 2831020

Brand: Widia / Part #: 2831020


Item #: 02774875
Brand: Widia
Model #: 2831020

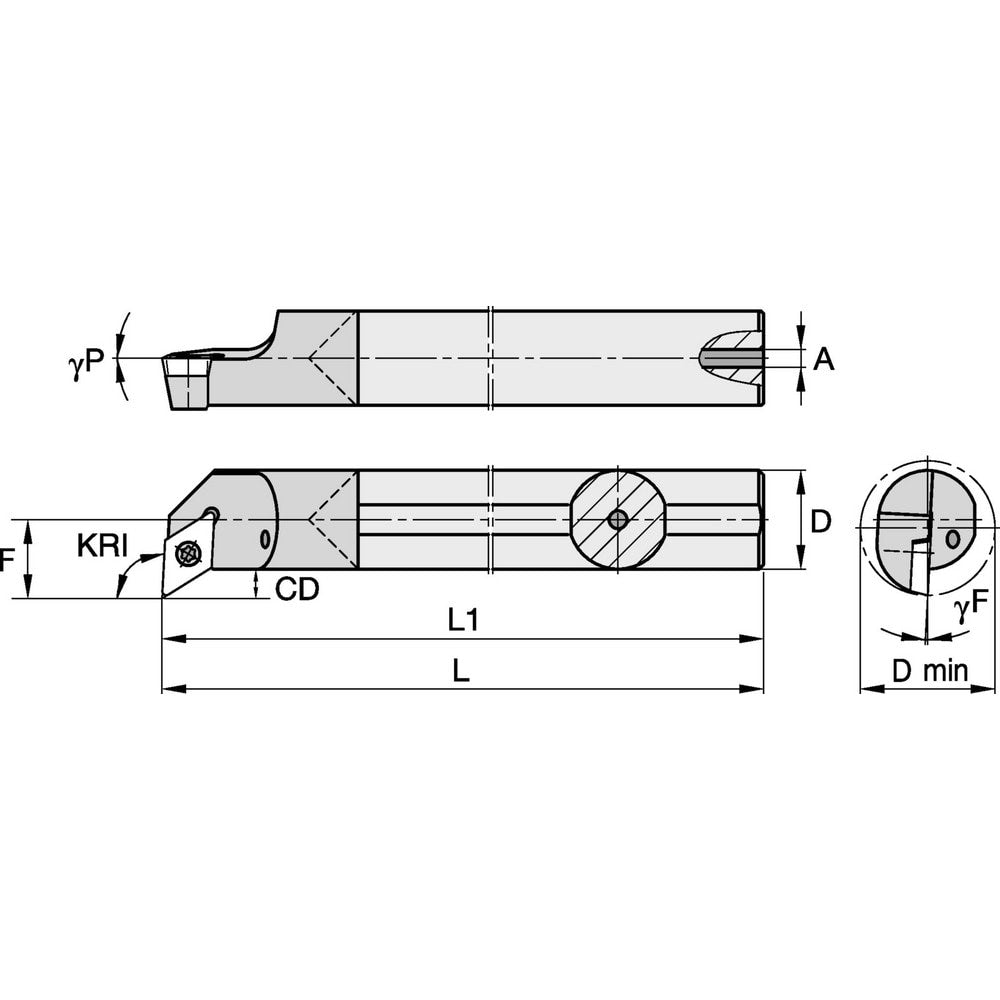

Product Specifications

Minimum Bore Diameter (mm) 9.140
Maximum Bore Depth (mm) 42.00
Toolholder Style CCPM
Tool Material Carbide
Shank Diameter (mm) 6.0000
Hand of Holder Right Hand
Overall Length (mm) 152.4000
Compatible Insert Size Code GP..050102
Insert Holding Method Screw
Compatible Insert Shape Diamond
Insert Included No
Rake Positive
Cutting Direction Right Hand
Rake Angle 0.000
Lead Angle 95.000
Series CCPM
Insert Inscribed Circle (Inch) 5/32
Compatible Insert Thickness (Decimal Inch) 0.0625
Compatible Insert Thickness (mm) 1.59
Multi-use Tool Yes
Cutting Tool Application Boring
Back of Bar to Cutting Edge (mm) 8.59
Center to Cutting Edge (mm) 5.59
Primary Workpiece Material Universal
Multi-Use Application Boring
Number of Inserts Used on Toolholder 1
Insert Thickness (Decimal Inch) 0.0625
Insert Thickness (Inch) 1/16
Coolant Hole Diameter (mm) 1.19
Number of Inserts Included in Order 0
Manufacturers Catalog Number CCPM61525R
Radial Rake 0
Coolant Through Yes
$304.43
