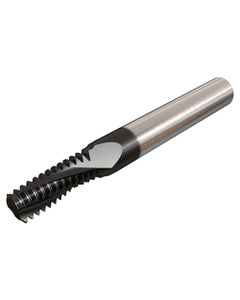

MTECB 0312D07 32UN IC908
Item #: EH565606235
Brand: Iscar
Model #: 5606235
| Product Specifications | |
|---|---|
| Threads per Inch (TPI) | 32 Threads/" |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Thread Standard | UNEF |THFT | |
| Flute Helix Angle (FHA) | 15 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.313″ |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.312″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ |
| Grade | IC908 |
| Flute Count (NOF) | 4 |
| Tool Type | Solid carbide thread mills |
| Coolant Supply Property (CSP) | Through Hole |
| Depth of Cut Maximum (APMX) | 0.74″ |
| Shank Type | Round |
| Body Material | Carbide |
| Coating | TiAlN |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | |
| Thread Form Type (THFT) | UN60 |
