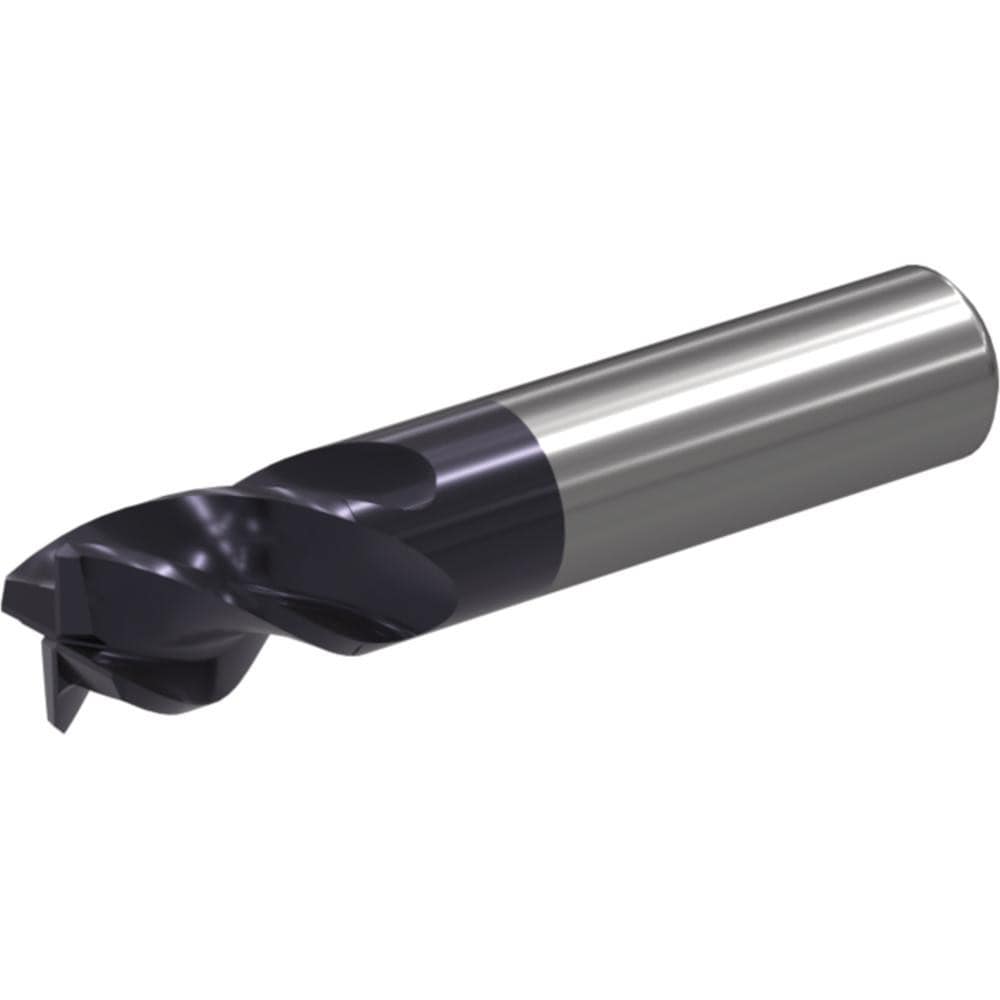

Brand: Widia / Part #: 6945598

Brand: Widia / Part #: 6945598


Item #: 33981671
Brand: Widia
Model #: 6945598

Product Specifications

Mill Diameter (Inch) 1/4
Chamfer Width (Decimal Inch) 0.0160
Coating/Finish TiAlN
End Mill Material Solid Carbide
Number Of Flutes 4
Single Or Double End Single
Overall Length (Inch) 2
Overall Length (mm) 2.00
Cutting Direction Right Hand
Coolant Through No
Mill Diameter (Decimal Inch) 0.2500
Flute Direction Right Hand
Overall Length (Decimal Inch) 2.0000
Chipbreaker No
End Type Single
Chamfer Angle 45
Length Of Cut (Decimal Inch - 4 Decimals) 0.3800
Length Type Regular
Flute Type Helical
Extended Reach No
Shank Type Straight-Cylindrical
Centercutting Yes
Material Removal Type Finishing
Shank Diameter (Decimal Inch) 0.2500
Shank Diameter (Inch) 1/4
Minimum Helix Angle 38.00
Maximum Helix Angle 38.00
Primary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code P; H; K; M
Secondary Workpiece Material Super Alloys & Titanium
Secondary Workpiece Material Code S
Material Grade WU20PE
Series W401
$17.10
