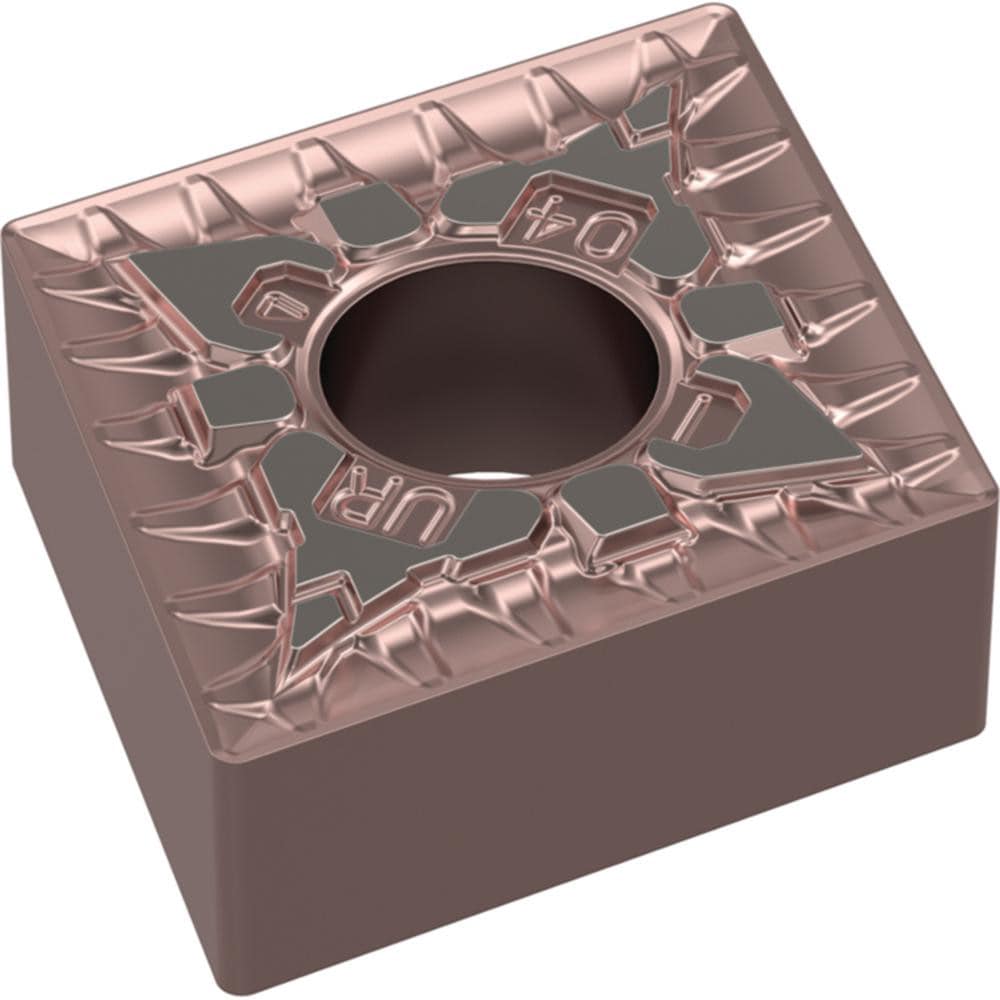

Brand: Widia / Part #: 5301402

Brand: Widia / Part #: 5301402


Item #: 93300689
Brand: Widia
Model #: 5301402

Product Specifications

Insert Style CNMG
Insert Shape Code C
Insert Size Code 432
Insert Shape Diamond
Coating/Finish AlTiN
Manufacturer Grade WS25PT
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.2539
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series CNMG
Coating Process PVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.5077
Number Of Cutting Edges 8
Secondary Workpiece Material Stainless Steel; Super-alloys & Titanium
Secondary Workpiece Material Code S; M
Ansi Code CNMG432UR
Iso Code CNMG120408UR
Manufacturers Catalog Number CNMG432UR
Cutting Direction Neutral
Coating Classification PVD
Chip Breaker UR
Style CNMG
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$13.24
