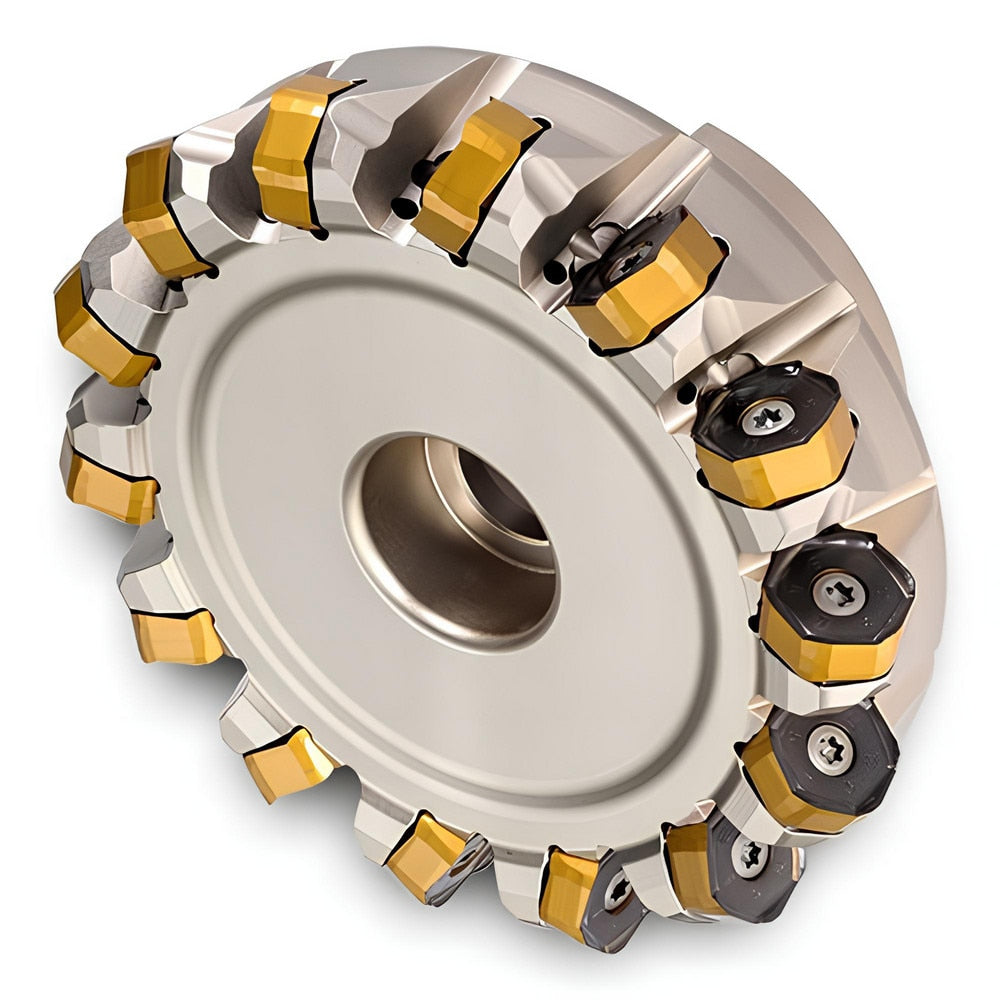

Brand: Ingersoll Cutting Tools / Part #: 2924969

Brand: Ingersoll Cutting Tools / Part #: 2924969


Item #: 96724885
Brand: Ingersoll Cutting Tools
Model #: 2924969

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 5.0000
Minimum Cutting Diameter (Inch) 5
Maximum Cutting Diameter (mm) 140.21
Maximum Cutting Diameter (Decimal Inch) 5.5200
Maximum Depth of Cut (Decimal Inch) 0.2000
Arbor Hole Diameter (Decimal Inch) 1.5000
Arbor Hole Diameter (Inch) 1-1/2
Lead Angle 45.000
Compatible Insert Size Code 1007
Cutter Style HN5G
Cutting Direction Right Hand
Insert Holding Method Screw
Rake Negative
Series HN5G
Keyway Width (Decimal Inch) 0.6250
Keyway Width (Inch) 5/8
Overall Height (Inch) 2-3/8
Overall Height (Decimal Inch) 2.3750
Pitch Type Close
Tool Application Chamfering; Facing
Tool Performance General Purpose
Primary Workpiece Material Universal
Complete Insert Compatibility HNGU1007
Toolholder Material Steel
Manufacturers Catalog Number HN5G-50R01
Number Of Cutter Inserts 14
Coolant Through Yes
Number Of Flutes 14
