Brand: Widia / Part #: 2023629

Brand: Widia / Part #: 2023629


Item #: 02777811
Brand: Widia
Model #: 2023629

Product Specifications

Minimum Bore Diameter (mm) 32.000
Maximum Bore Depth (mm) 175.00
Toolholder Style SDUCL
Tool Material Carbide
Shank Diameter (mm) 25.0000
Hand of Holder Left Hand
Overall Length (mm) 300.0000
Compatible Insert Size Code DC..11T308
Insert Holding Method Screw
Compatible Insert Shape Diamond
Insert Included No
Rake Positive
Cutting Direction Left Hand
Rake Angle -5.000
Lead Angle 93.000
Series E-SDUC
Insert Inscribed Circle (Inch) 3/8
Compatible Insert Thickness (Decimal Inch) 0.1563
Compatible Insert Thickness (mm) 3.97
Multi-use Tool Yes

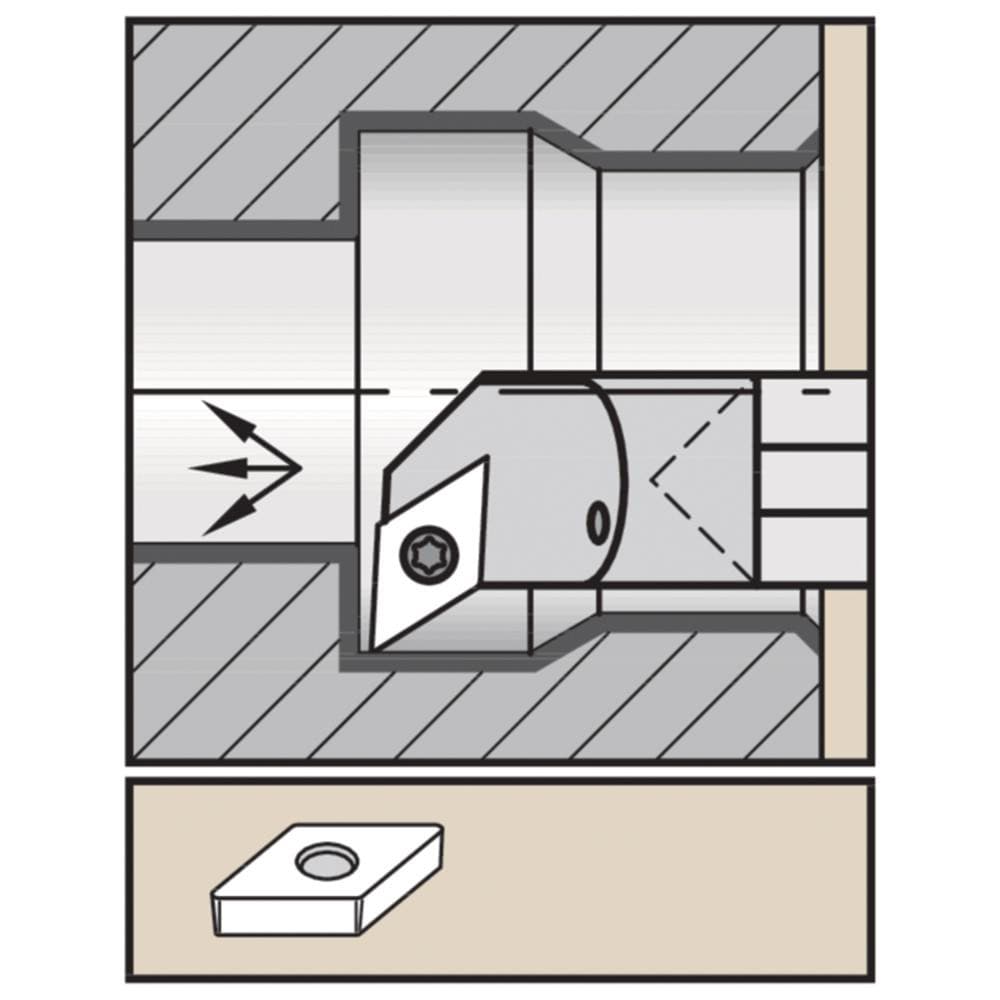

Cutting Tool Application Boring
Back of Bar to Cutting Edge (mm) 29.50
Center to Cutting Edge (mm) 17.00
Primary Workpiece Material Universal
Multi-Use Application Boring
Number of Inserts Used on Toolholder 1
Insert Thickness (Decimal Inch) 0.1563
Insert Thickness (Inch) 5/32
Number of Inserts Included in Order 0
Manufacturers Catalog Number E25TSDUCL11
Radial Rake 0
Coolant Through Yes
$1,147.62
