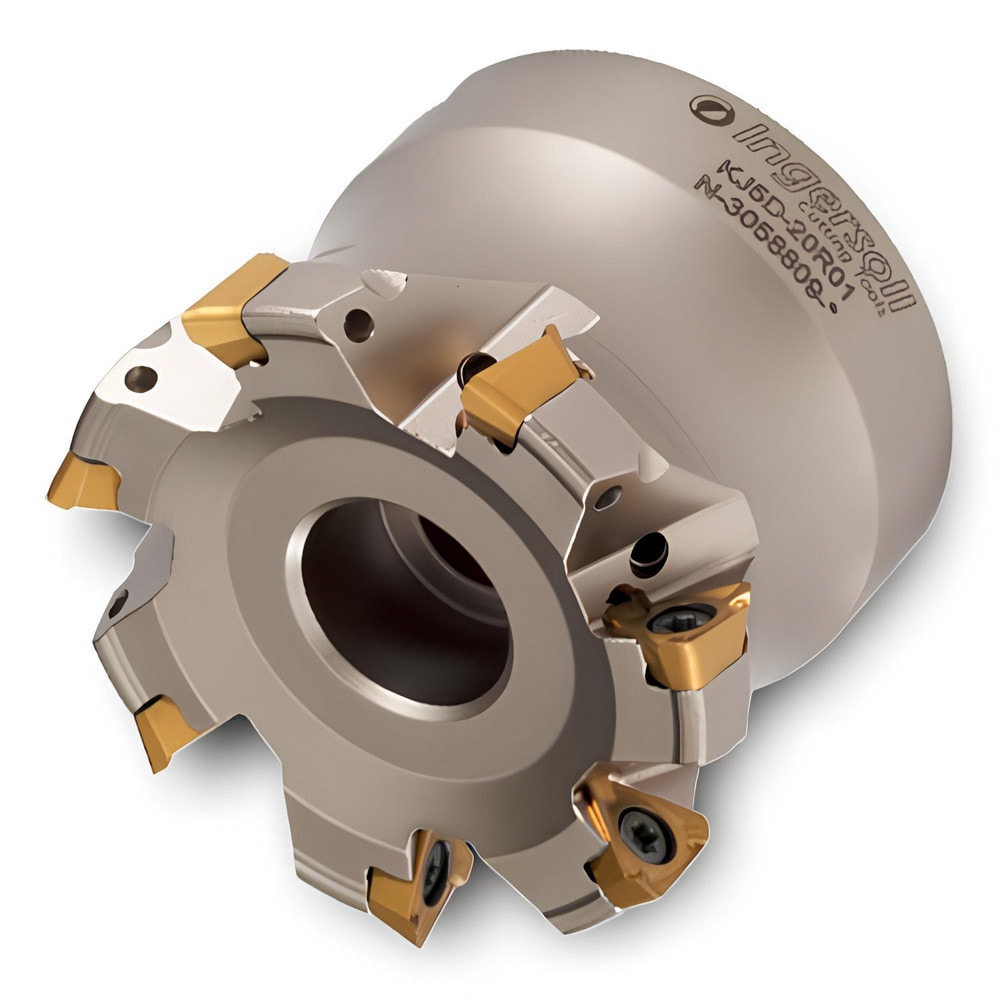

Brand: Ingersoll Cutting Tools / Part #: 3031300
Item #: 96429360
Brand: Ingersoll Cutting Tools
Model #: 3031300
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.5748 |
| Minimum Cutting Diameter (mm) | 40.00 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 7.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Compatible Insert Size Code | 0604 |
| Maximum Ramping Angle | 1.3 |
| Cutter Style | KJ5D |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 deg |
| Rake | Positive |
| Series | KJ5D |
| Overall Height (Mm - 5 Decimals) | 40.00000 |
| Overall Height (Decimal Inch) | 1.5748 |
| Keyway Width (Decimal Inch) | 0.3307 |
| Pitch Type | Close |
| Tool Application | Facing; Helical Interpolation; Shouldering; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Cutting Edge Length (Decimal Inch) | 0.2756 |
| Complete Insert Compatibility | THES0604? |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | KJ5D040R00 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 7 |
