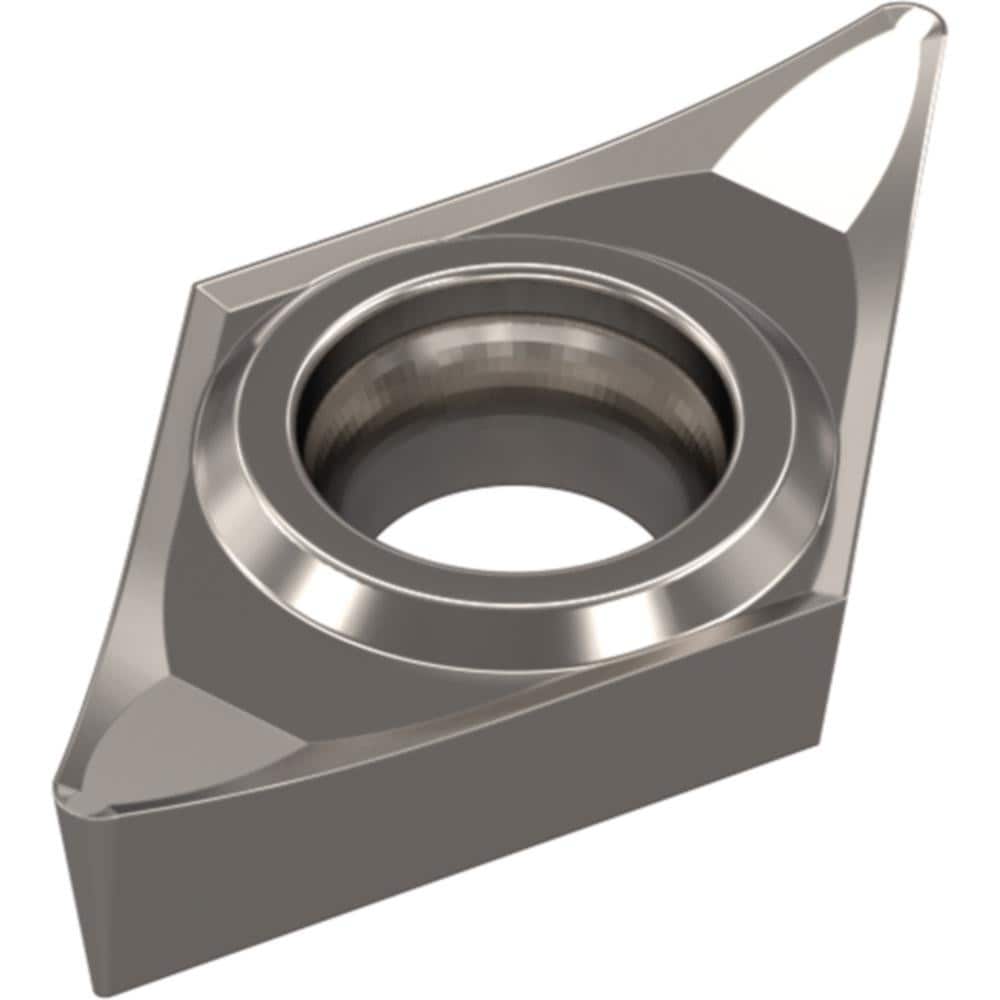

Brand: Widia / Part #: 6968755

Brand: Widia / Part #: 6968755


Item #: 95242756
Brand: Widia
Model #: 6968755

Product Specifications

Insert Style DCGT
Insert Shape Code D
Insert Size Code 2151
Insert Shape Diamond
Coating/Finish AlTiN
Manufacturer Grade WU05PT
Corner Radius (Decimal Inch) 0.0157
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1142
Maximum Depth of Cut (Decimal Inch) 0.1526
Inscribed Circle (Decimal Inch) 0.2500
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.0938
Clearance Code C
Tolerance Code G
Included Angle 55.00
Relief Angle 7.000
Series DCGT
Coating Process PVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.3052
Number Of Cutting Edges 2
Primary Workpiece Material Non-Ferrous Metal
Primary Workpiece Material Code N
Secondary Workpiece Material Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Secondary Workpiece Material Code P; S; K; M
Ansi Code DCGT2151AL
Iso Code DCGT070204AL
Manufacturers Catalog Number DCGT2151AL
Cutting Direction Neutral
Coating Classification PVD
Chip Breaker AL
Style DCGT
Width (Decimal Inch - 4 Decimals) 0.2500
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$19.74
