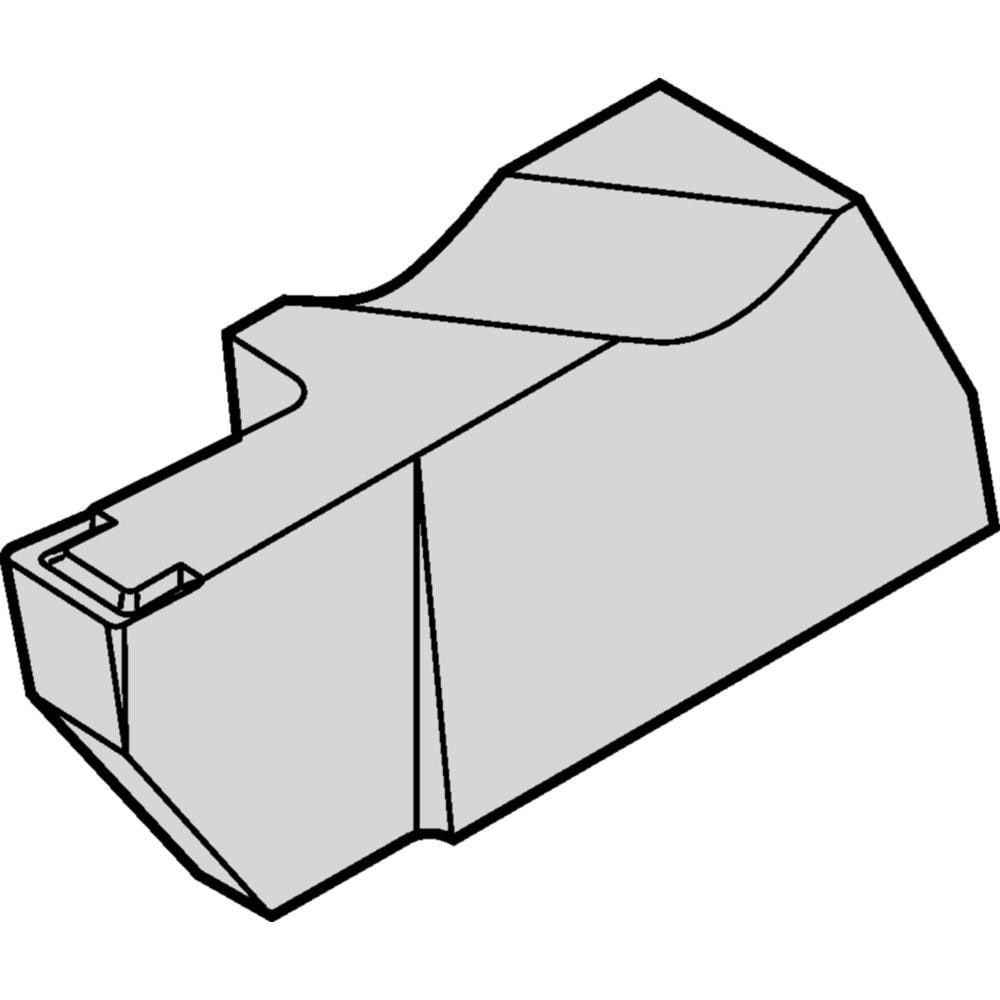

Brand: Widia / Part #: 3606922
Item #: 94500212
Brand: Widia
Model #: 3606922
Product Specifications
| Insert Style | NGD-K |
| Insert Size Code | 3 |
| Insert Size | 3 |
| Insert Material | Carbide |
| Manufacturer Grade | TN6010 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (Inch) | 1/4 |
| Maximum Depth of Cut (mm) | 6.35 |
| Insert Holding Method | Clamp |
| Cutting Height (Inch) | 1/4 |
| Insert Hand | Right Hand |
| Corner Radius (mm) | 0.19 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Lead Angle | 0.000 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Series | NGD-K |
| Coating Process | PVD |
| Rake Angle | 10.000 |
| Overall Length (Decimal Inch) | 0.9860 |
| Overall Length (mm) | 25.0300 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Ansi Code | NGD3M300RK |
| Iso Code | NGD3M300RK |
| Maximum Corner Radius (Decimal Inch) | 0.0075 |
| Manufacturers Catalog Number | NGD3M300RK |
| Minimum Groove Width (mm) | 3.00 |
| Type | Top Notch Grooving Insert |
| Maximum Groove Width (mm) | 3.00 |
| Minimum Insert Width (mm) | 3.00 |
| Chip Breaker | K |
| Insert Seat Size | 3 |
| Style | Top Notch Grooving Insert |
| Full Radius | No |
| Coating Classification | PVD |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Coating/Finish | TiAIN |
| Number Of Cutting Edges | 1 |
| Single Or Double End | Single |
| Groove Width (mm) | 3.00 |
| For Use With | Grooving; Turning |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.0000 |
