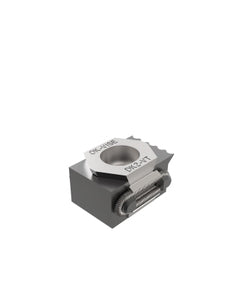

Knife Edge Grip Jaw Clamp, Knife Edge Grip and Smooth Jaws, 145 Nm Torque, 55kN Clamping Force, 22 mm Jaw Height, 30 mm Jaw Width
Item #: SG67DK2VTSG
Brand: Jergens
Model #: DK2-VT-SG
| Product Specifications | |
|---|---|
| Type | Knife Edge Grip Jaw Clamp |
| Length Minimum | 46.6 mm |
| Style | Knife Edge Grip and Smooth Jaws |
| Length Optimum | 49.9 mm |
| Torque | 145 Nm |
| Total Height | 26 mm |
| Clamp Center to Jaw Face Minimum | 25.5 mm |
| Total Width | 41 mm |
| Clamp Center to Jaw Face Optimum | 27.2 mm |
| Weight | 0.212 kgs |
| Clamp Center to Jaw Face Maximum | 28.9 mm |
| Socket Head Screw Size | M12 × 30 |
| Clamping Force | 55kN |
| Hardness of Jaws HRC X | 38-42 |
| Jaw Height | 22 mm |
| Hardness of Jaws HRC Y | 48-52 |
| Jaw Width | 30 mm |
| Series | OK-Vise Clamps |
| Length Maximum | 53.3 mm |
