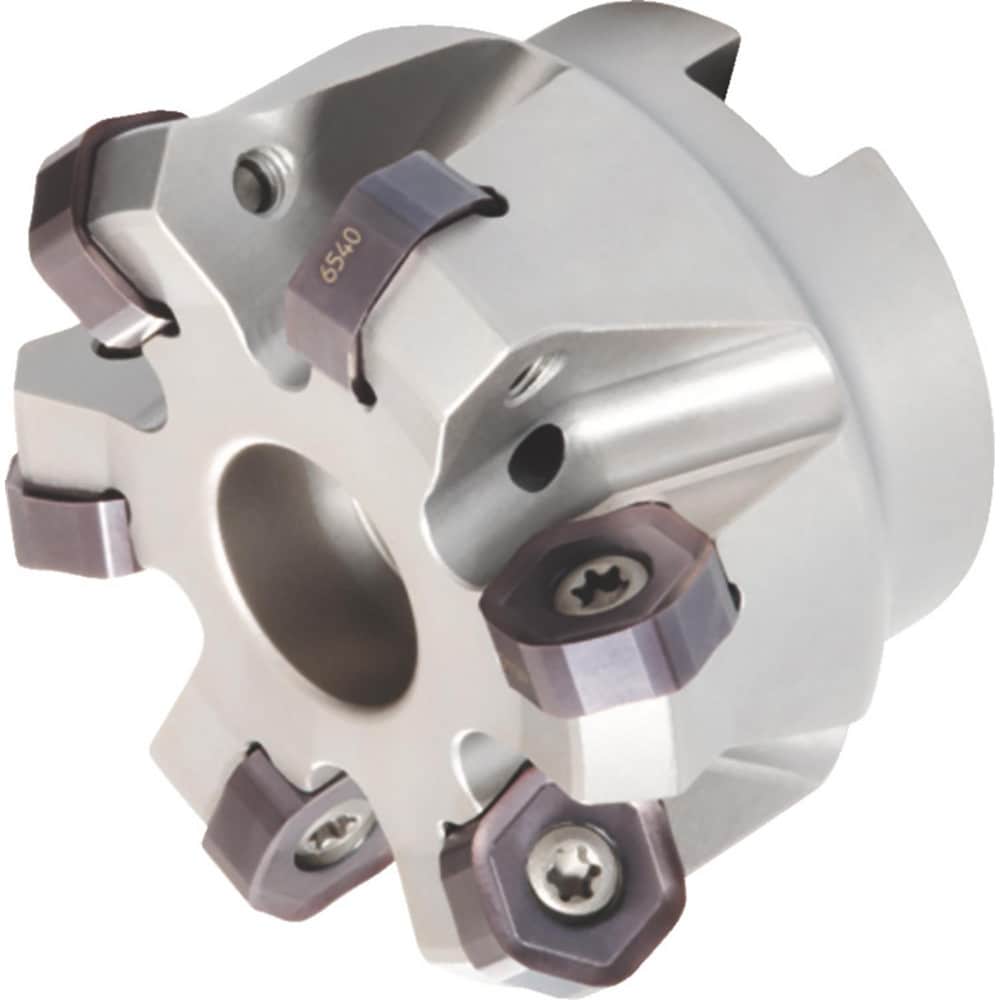

Brand: Widia / Part #: 3954491

Brand: Widia / Part #: 3954491


Item #: 29028909
Brand: Widia
Model #: 3954491

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 3.0000
Minimum Cutting Diameter (Inch) 3
Maximum Cutting Diameter (Decimal Inch) 3.3425
Maximum Depth of Cut (Decimal Inch) 0.1378
Arbor Hole Diameter (Decimal Inch) 1.0000
Arbor Hole Diameter (Inch) 1
Lead Angle 45.000
Compatible Insert Size Code HN..0704
Cutter Style M1200 Mini
Cutting Direction Right Hand
Insert Holding Method Screw
Rake Negative
Series M1200 Mini
Hub Diameter (Decimal Inch) 2.1890
Overall Height (Inch) 1-3/4
Overall Height (Decimal Inch) 1.7500
Maximum Body Diameter (Decimal Inch) 3.2350
Maximum RPM 8300.000
Tool Application Chamfering; Facing; Milling
Tool Performance General Purpose
Primary Workpiece Material Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; H; K; M; N
Complete Insert Compatibility HNGJ0704ANENLD
Toolholder Material Steel
Number Of Cutter Inserts 5
Coolant Through Yes
Number Of Flutes 5
$608.71
