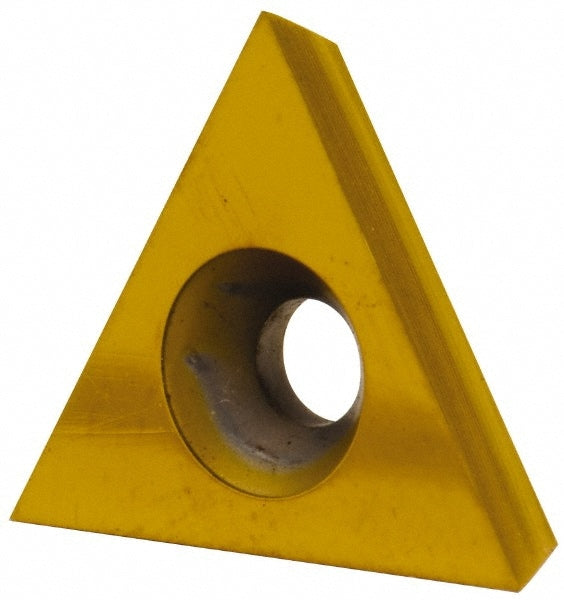

Brand: Widia / Part #: 2821397
Item #: 70730866
Brand: Widia
Model #: 2821397
Product Specifications
| Insert Style | TPCB |
| Insert Size Code | 3205 |
| Insert Material | Carbide |
| Material Grade | Micrograin |
| Thickness (Inch) | 1/8 |
| Manufacturer Grade | CG5 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Hole Diameter (Decimal Inch) | 0.1300 |
| Maximum Depth of Cut (Decimal Inch) | 0.4287 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0070 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Chipbreaker | Yes |
| Series | TPHB |
| Coating Process | PVD |
| Included Angle | 60.00 |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M; N |
| Ansi Code | TPHB3205 |
| Iso Code | TPHB160302 |
| Standards | ISO; ANSI |
| Cutting Direction | Neutral |
| Shape | Triangle |
| Manufacturers Catalog Number | TPHB160302 |
| Single or Multi Tipped | Multi Tipped |
| Length (Decimal Inch - 4 Decimals) | 0.6496 |
| Lead Angle | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.6496 |
| Coating/Finish | TiN |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
