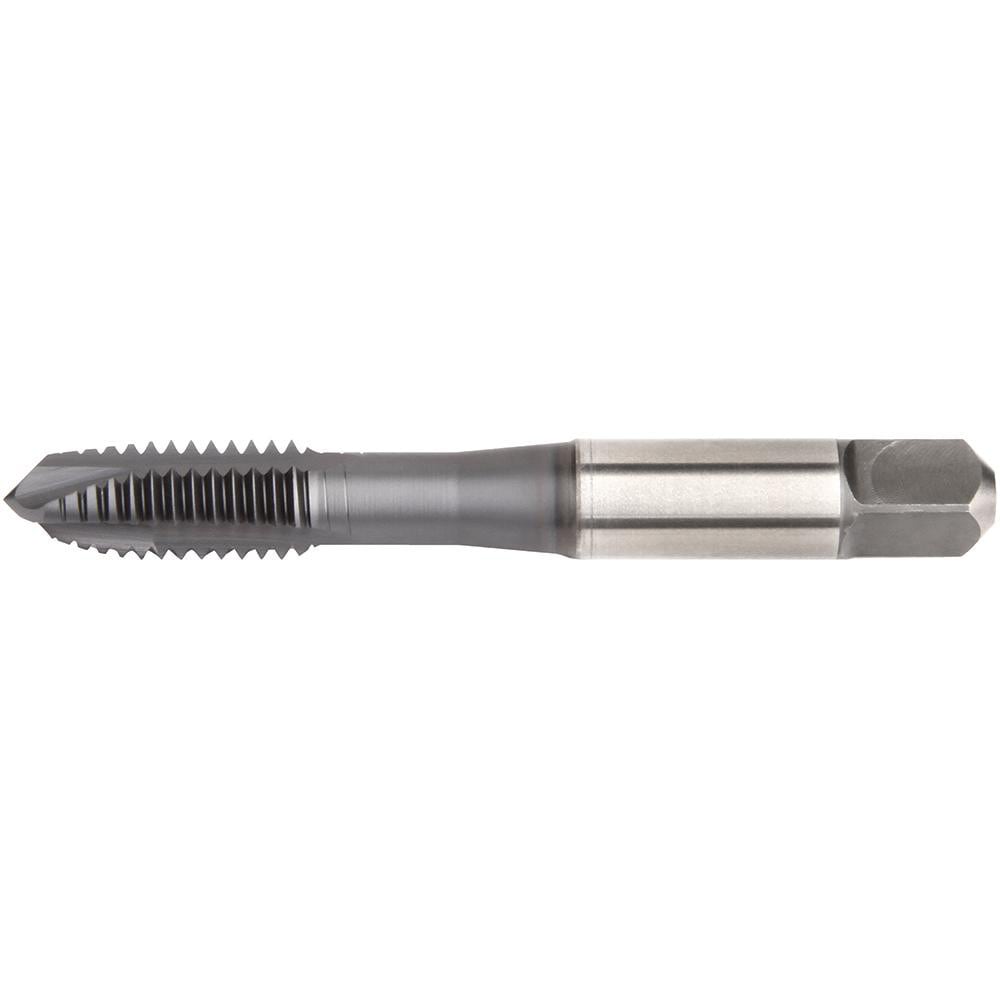

Brand: Widia / Part #: 5366898
Item #: 90879925
Brand: Widia
Model #: 5366898
Product Specifications
| Thread Size (Inch) | 3/8-16 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | H5 |
| Class Of Fit | H5 |
| Coating/Finish | TiCN |
| Threads per Inch | 16 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 1.2700 |
| Thread Pitch (Decimal Inch) | 0.0625 |
| Thread Standard | UNC |
| Material Grade | WP42EG |
| Thread Length (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 2.9400 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Square Size (Decimal Inch) | 0.2840 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
