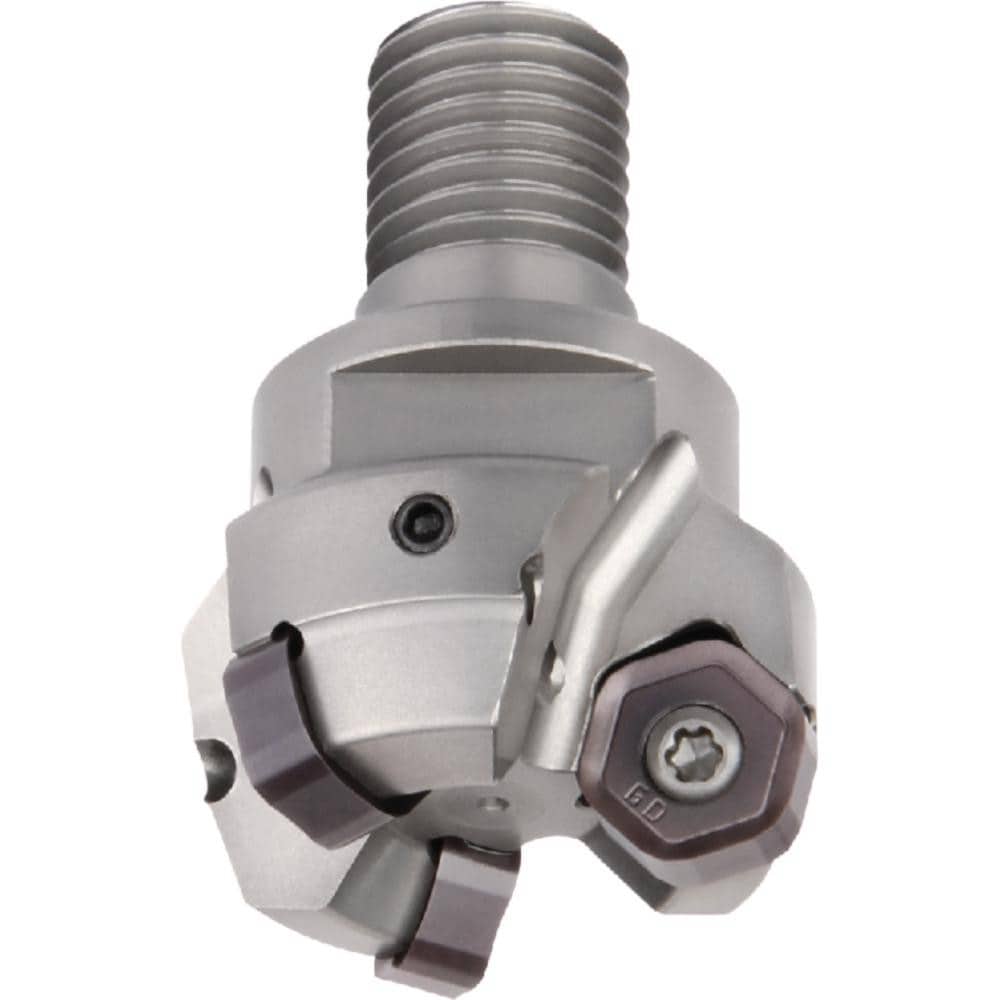

Brand: Widia / Part #: 4136875
Item #: 99576613
Brand: Widia
Model #: 4136875
Product Specifications
| Minimum Cutting Diameter (mm) | 25.00 |
| Maximum Cutting Diameter (mm) | 39.13 |
| Maximum Depth of Cut (mm) | 1.70 |
| Toolholder Style | M1200 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 29.0000 |
| Maximum Ramping Angle | 0 |
| Compatible Insert Style | HNGJ |
| Compatible Insert Size Code | HN..0704 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (mm) | 56.5000 |
| Series | M1200 Mini |
| Flute Type | Straight |
| Maximum RPM | 20000.000 |
| Modular Connection Size | M16 |
| Head Length (mm) | 32.00 |
| Projection (mm) | 32.000 |
| Tool Application | Facing; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Complete Insert Compatibility | HNGJ0704ANENLD |
| Lead Angle | 15 |
| Number Of Flutes | 3 |
| End Mill Material | Steel |
| Coolant Through | Yes |
