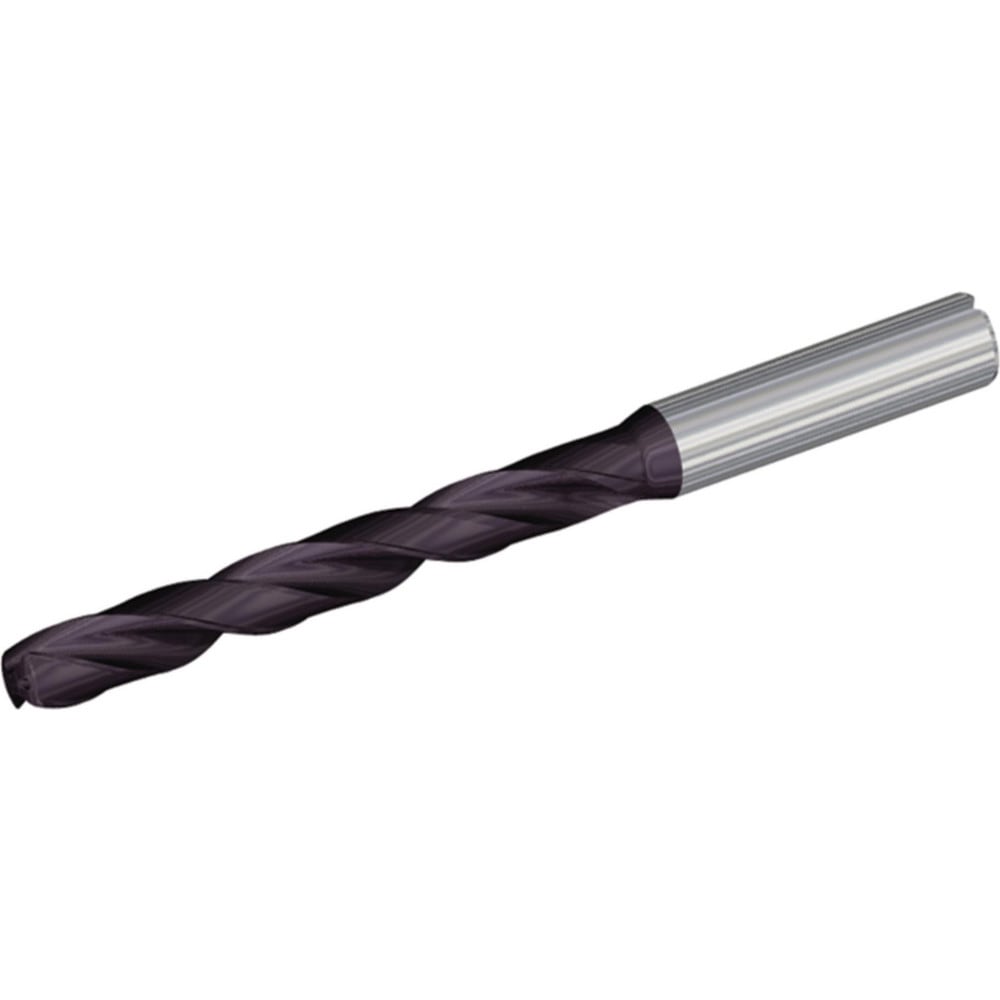

Brand: Widia / Part #: 4173494

Brand: Widia / Part #: 4173494


Item #: 03532066
Brand: Widia
Model #: 4173494

Product Specifications

Drill Bit Size (Inch) 5/16
Tool Material Carbide
Coating/Finish TiAlN
Drill Point Angle 132
Shank Type Cylindrical
Coolant Through Yes
Flute Type Spiral
Series TDS504A
Point Type Cone Relief
Cutting Direction Right Hand
Tool Application Deep Hole Drilling
Spiral Type Regular
Drill Bit Diameter Tolerance 0.000200 to 0.000800 in
Number Of Flutes 2
Primary Workpiece Material Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code P; K; M
Drill Bit Grade WU20PD
Drill Bit Size (Decimal Inch) 0.3125
Drill Point Length (Decimal Inch) 0.0663
Overall Length (Decimal Inch) 6.0236
Shank Diameter (Decimal Inch) 0.3150
Shank Length (Decimal Inch) 1.4173
Flute Length (Decimal Inch) 4.4882
Flute By Diameter Ratio 12xD
Maximum Drilling Depth (Decimal Inch) 3.7795
$280.37
