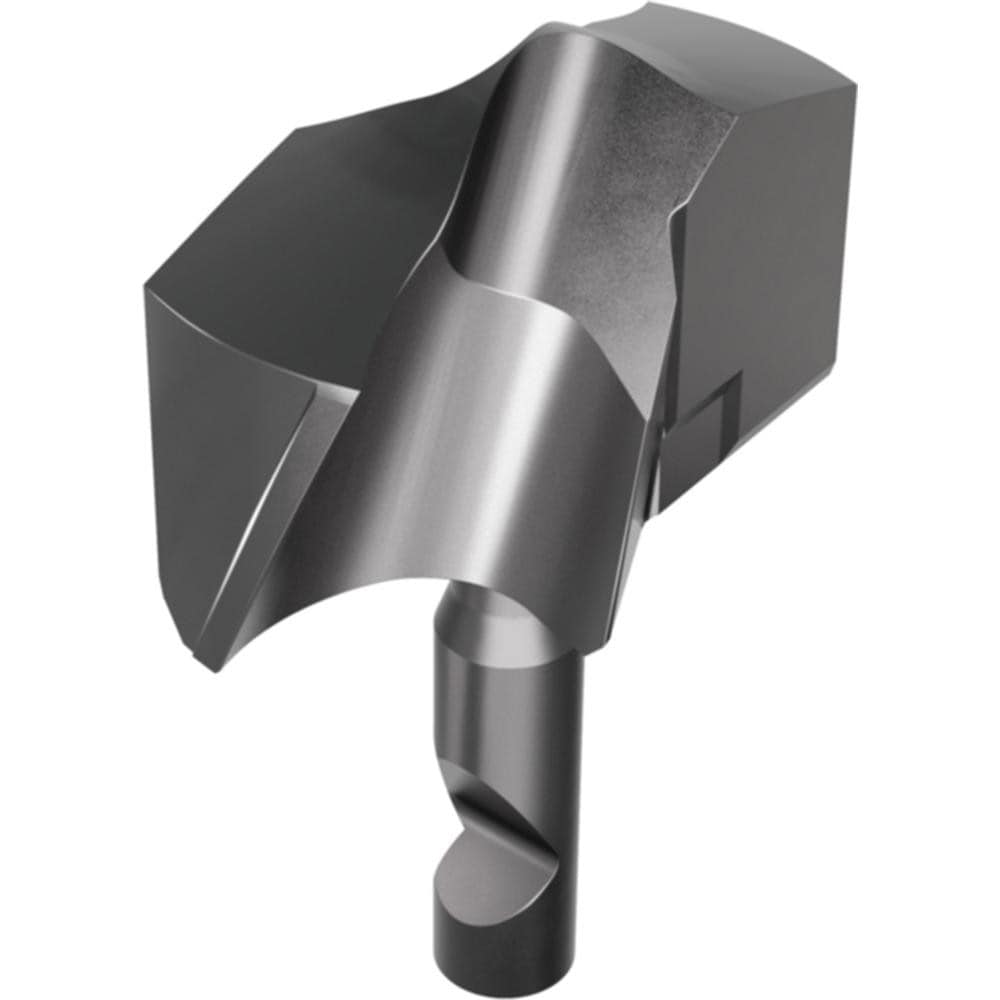

Brand: Widia / Part #: 6568875
Item #: 02412559
Brand: Widia
Model #: 6568875
Product Specifications
| Maximum Drill Diameter (Decimal Inch) | 1.1093 |
| Diameter (Decimal Inch) | 1.1093 |
| Point Angle | 140.00 |
| Diameter (Inch) | 1-7/64 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | WP40PD |
| Material Grade | 11% Cobalt |
| Cutting Direction | Right Hand |
| Series | TDMX Drill |
| Coating Process | PVD |
| Insert Geometry | PK |
| Insert Seat Size | M |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Height (Decimal Inch) | 1.610200 |
| Overall Length/Projection (Decimal Inch) | 1.6102 |
| Minimum Cutting Diameter (Decimal Inch) | 1.1093 |
| Head Length (Decimal Inch) | 1.6102 |
| Drill Point Angle | 140 |
| Insert Holding Method | Screw |
| Minimum Cutting Diameter (Inch) | 1-7/64 |
| ISO Number | TDMX28176PKM |
| Coolant Through | No |
| Cutting Diameter (Decimal Inch) | 1.1093 |
| Cutting Diameter (Inch) | 1-7/64 |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
