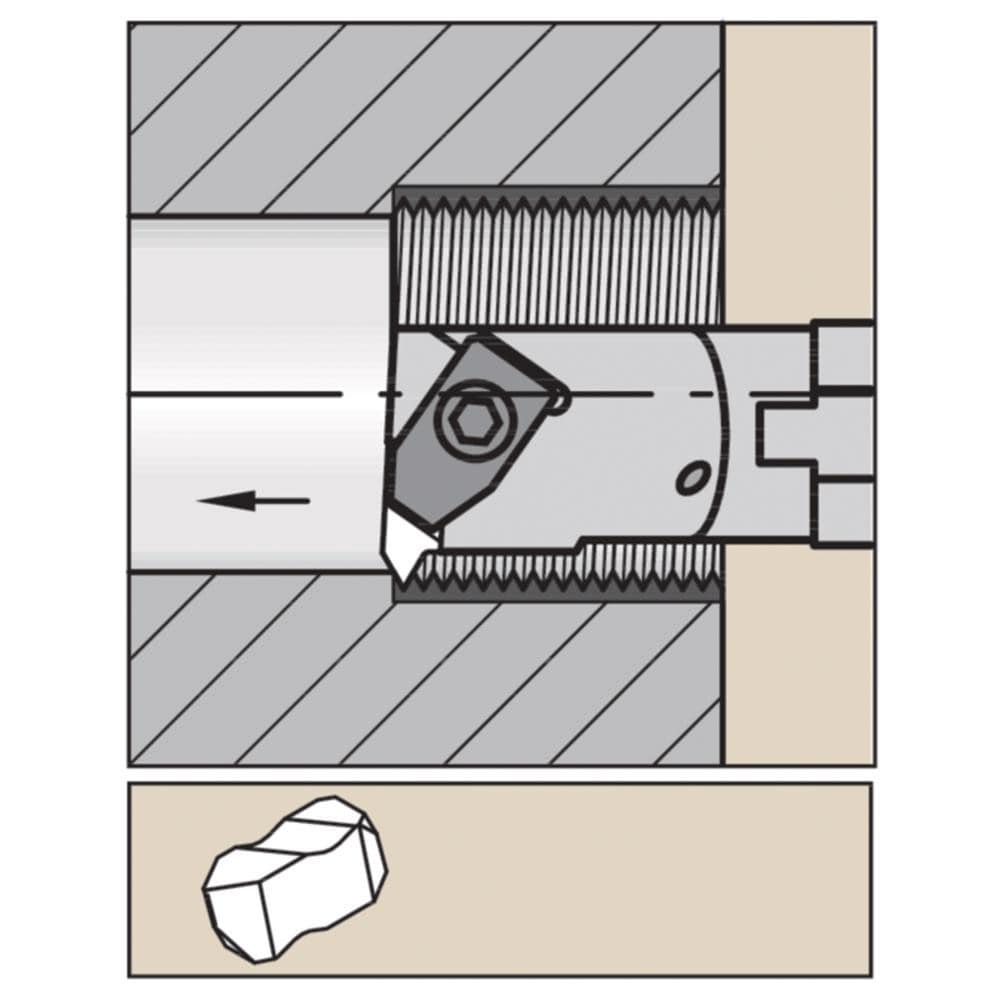

Brand: Widia / Part #: 3641646

Brand: Widia / Part #: 3641646


Item #: 99721193
Brand: Widia
Model #: 3641646

Product Specifications

Thread Type Internal
Hand of Holder Right Hand
Compatible Insert Size Code 3
Shank Width/Diameter (mm) 32.00
Toolholder Style SNNT
Insert Compatibility N.3L
Coolant Entry Style Code 1-Axial Concentric Entry
Insert Holding Method Clamp
Shank Height (mm) 0.00
Shank Length (mm) 250.000
Overall Length (mm) 250.0000
Minimum Bore Diameter (mm) 44.00
Series A-NNT
Multi-use Tool Yes
Cutting Tool Application Grooving; Chamfering; Threading
Maximum Depth of Cut (mm) 4.76
Adjustable Overhang Yes
Back of Bar to Cutting Edge (mm) 38.00
Center to Cutting Edge (mm) 22.00
Insert Inscribed Circle (Decimal Inch) 0.3438
Insert Inscribed Circle (Inch) 11/32
Insert Inscribed Circle (mm) 8.73
Primary Workpiece Material Code P; S; H; K; M; N; O
Coolant Hole Thread Size (Inch) 1/4-18 NPT
Toolholder Material Steel
Insert Thickness (Decimal Inch) 0.1950
Style SNNT
Coolant Through Yes
$274.54
