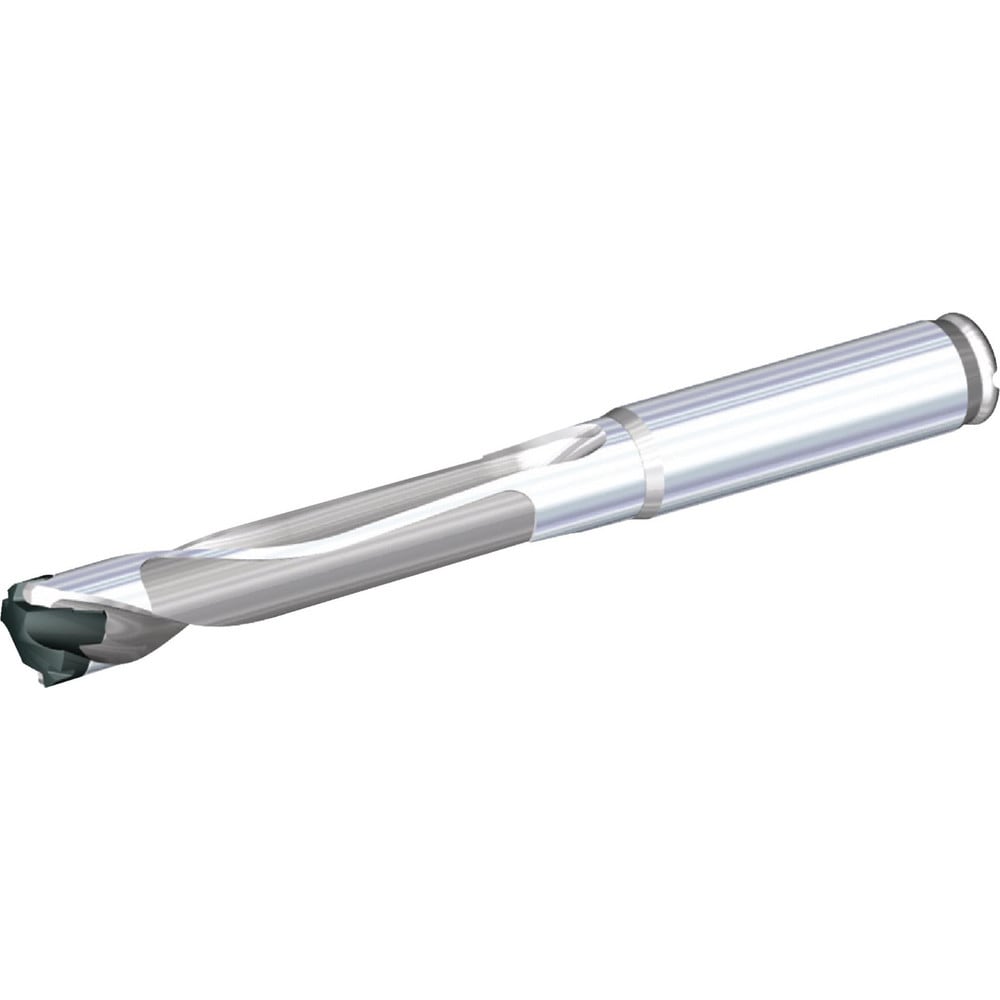

Brand: Widia / Part #: 3851569

Brand: Widia / Part #: 3851569


Item #: 84251933
Brand: Widia
Model #: 3851569

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.5709
Maximum Drill Diameter (Decimal Inch) 0.5902
Drill Depth by Diameter Ratio 5xD
Maximum Drill Depth (Decimal Inch) 2.9500
Shank Type Cylindrical
Insert Style TDM
Shank Diameter (Inch) 5/8
Shank Diameter (Decimal Inch) 0.6250
Insert Seat Size W23
Tool Material Steel
Compatible Insert Style TDM
Compatible Insert Size Code W23
Overall Length (Decimal Inch) 5.7500
Overall Length (Inch) 5-3/4
Series TDM1
Toolholder Style TDM1
Flute Length (Decimal Inch) 3.7200
Body Length (Decimal Inch) 3.7200
Shank Length (Decimal Inch) 1.9098
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Tip Length (Decimal Inch) 0.1094
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
