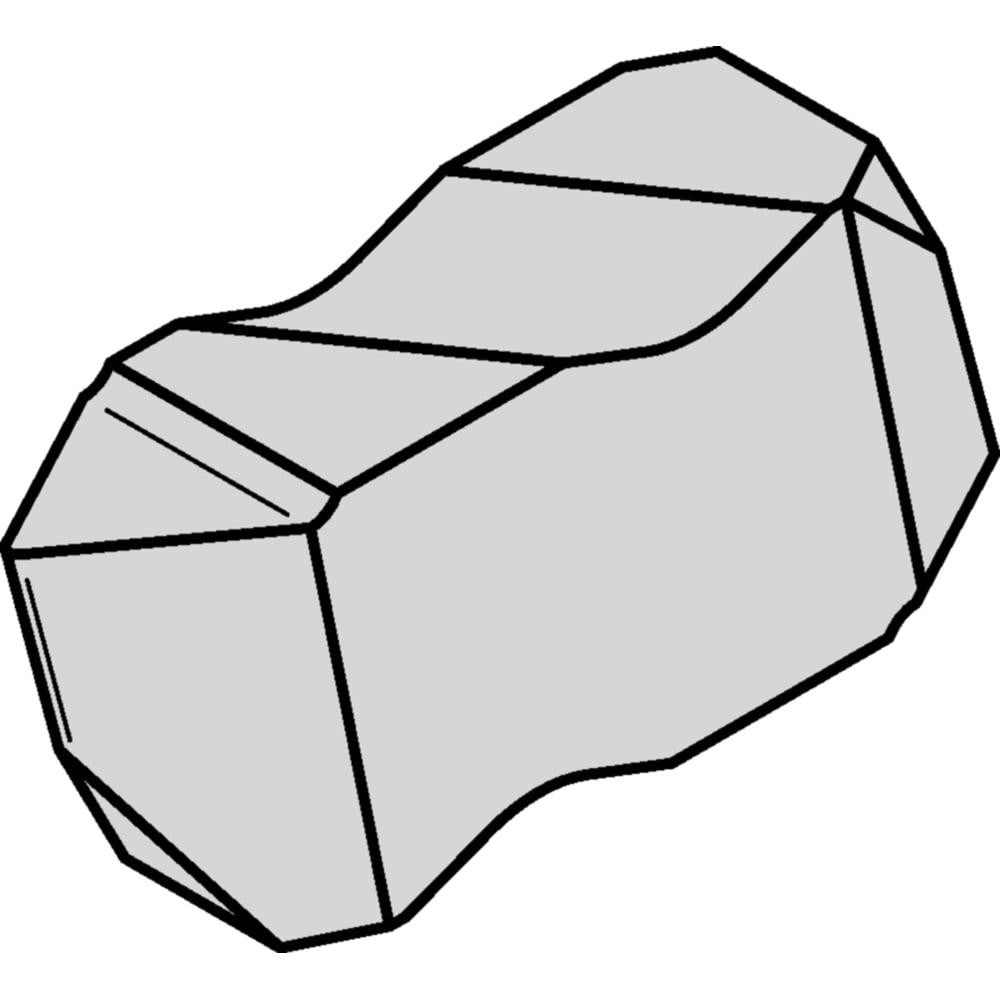

Brand: Widia / Part #: 3607850
Item #: 97273049
Brand: Widia
Model #: 3607850
Product Specifications
| Insert Style | NJP |
| Insert Material | Carbide |
| Manufacturer Grade | TN6025 |
| Thread Type | External |
| Material Grade | TN6025 |
| Thread Standard | UNJ |
| Insert Hand | Right Hand |
| External Pitch | 2.11 |
| Included Angle | 60.00 |
| Chipbreaker | POSITIVE |
| Series | NJP |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0130 |
| Corner Radius (mm) | 0.33 |
| Ansi Code | NJP3014R12 |
| Iso Code | NJP3014R12 |
| Maximum Corner Radius (Decimal Inch) | 0.0130 |
| Maximum Depth of Cut (Decimal Inch) | 0.1689 |
| Coating Classification | PVD |
| Shape | Irregular |
| Insert Holding Method | Clamp |
| Insert Size | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3440 |
| Finish Coating | AlTiN |
| Coolant Through | No |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.0000 |
