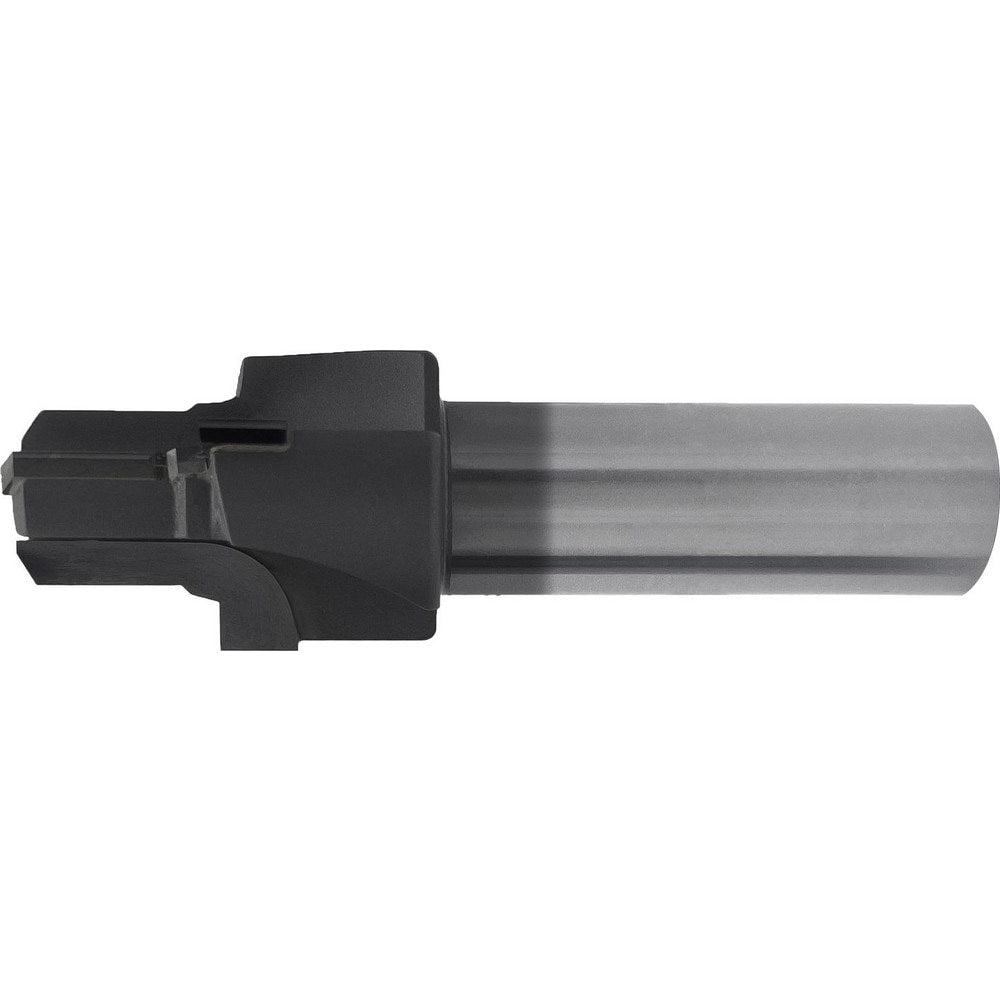

Brand: Scientific Cutting Tools / Part #: SAEJ1926-14RX3A
Item #: 99235400
Brand: Scientific Cutting Tools
Model #: SAEJ1926-14RX3A
Product Specifications
| Spotface Diameter (Decimal Inch) | 1.7750 |
| Tube Outside Diameter Compatibility (Inch) | 7/8 |
| Pilot Type | Reamer |
| Port Thread Size (Decimal Inch) | 1-3/16-12 |
| Tool Material | Carbide-Tipped |
| Tube Dash Number | 14.000 |
| Minimum Pilot Diameter (Decimal Inch) | 1.1040 |
| Pilot Length | 0.7790 |
| Overall Length (Decimal Inch) | 4.2100 |
| Number Of Flutes | 3 |
| Standards | SAEJ1926; MS16142 |
| Shank Type | Straight |
| Identification Groove | No |
| Series | Coolant Through |
| Seal Angle | 15 |
| Thread Type | UN |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 1 |
| Shank Length (Decimal Inch) | 2.2500 |
| Maximum Pilot Diameter (Decimal Inch) | 1.2755 |
| Head Length (Decimal Inch) | 1.9600 |
| Workpiece Compatibility | Tubes |
| Coating/Finish | AlTiN |
