Brand: Widia / Part #: 3653423

Brand: Widia / Part #: 3653423


Item #: 98288541
Brand: Widia
Model #: 3653423

Product Specifications

Internal or External External
Maximum Depth of Cut (mm) 16.00
Hand of Holder Right Hand
Maximum Groove Width (mm) 3.00
Minimum Groove Width (mm) 3.00
Toolholder Style WMTBR
Tool Material Steel
Insert Holding Method Clamp
Compatible Insert Size Code S300
Insert Compatibility WMTS300M3P03PT
Shank Height (mm) 25.00
Shank Length (mm) 115.890
Shank Width/Diameter (mm) 25.00
Series WMT
Overall Length (mm) 150.0000

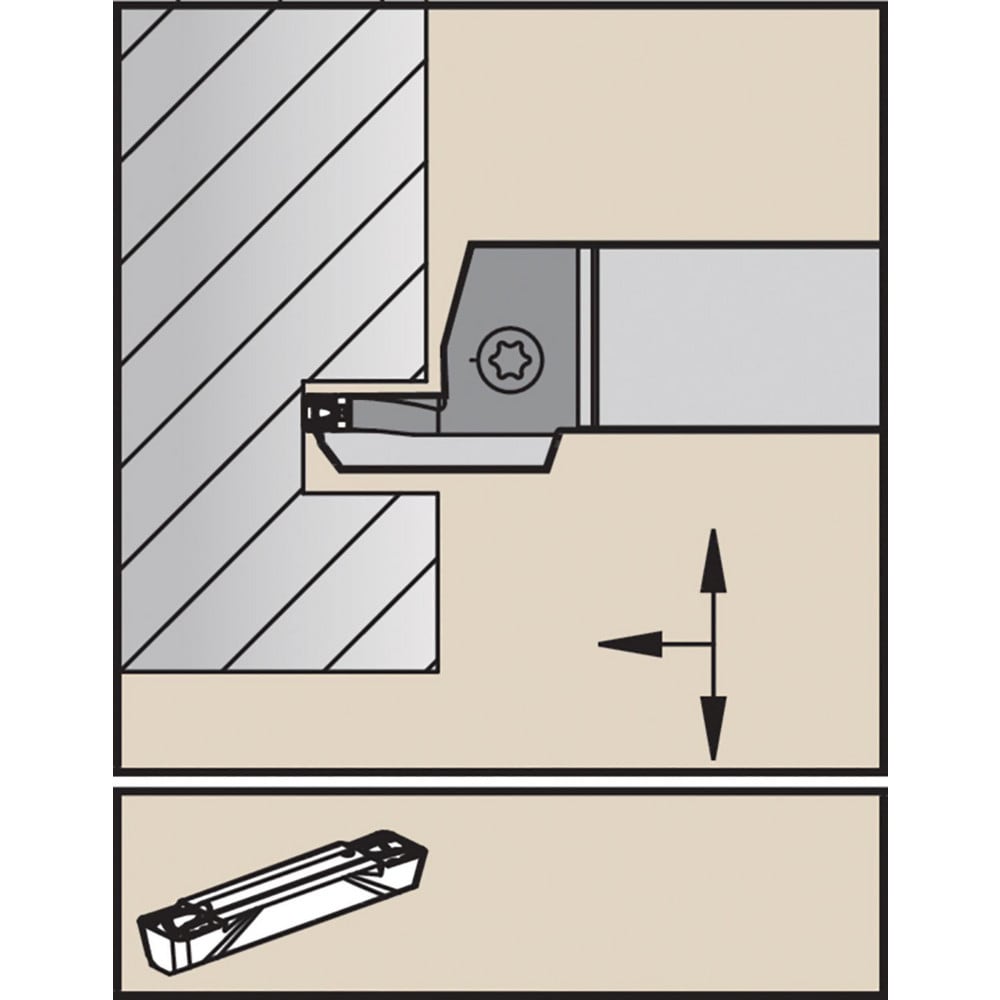

Cutting Tool Application Grooving; Facing
Back of Bar to Cutting Edge (Decimal Inch) 0.9843
Head Height (mm) 32.110
Head Length (mm) 34.11
Primary Workpiece Material Universal
Insert Seat Size 3.0
Coolant Through No
