24" SHG-TC Linear Encoder - Industrial Tool & Supply

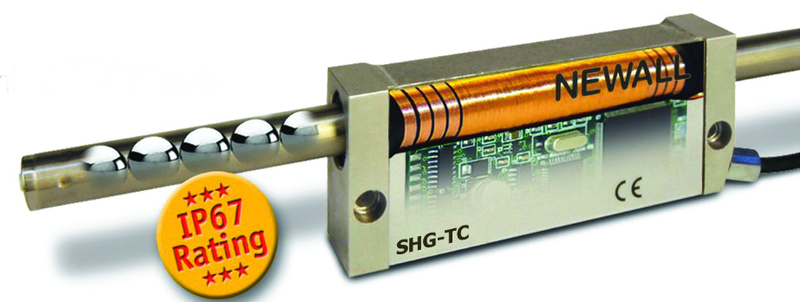

24" SHG-TC Linear Encoder


Item #: MS34MA02400
Manufacturer: Newall
Mfg #: SHG-TC MFM

Technical Specifications:
•: ±5µ¼m ( 0.0002) •: -20 to 70°C (-4 to 158°F) •: BS EN 50081-2 & BS EN 50082-2 •: D Type 15 Pin (IP54, NEMA 6) •: Distance-Coded •: Stainless Steel •: 0 to 55°C (32 to 131°F) •: 0.00005 •: 4m/s at 1µ¼m resolution •: 9 Core Screened with PUR (polyurethane) cover with no armour •Brand Name: Newall •Cable Length: 20" / .5mm •Model Number: SHG-TC-MFAMA02400 •Style: Inductive •Travel: 24 •Type: Linear Encoder

Description:
•For MillPwr CNC Controls •Direct plug and play replacement of Acu-Rite glass scales •Withstands dust, dirt, chips, coolant and oil •IP67 rated (fully submersible) •Tolerant to shock and vibration •No mechanical wear, cleaning or maintenance •Easy to install

Shipping Info:
•Actual Weight - 10.0000
$1,402.09
