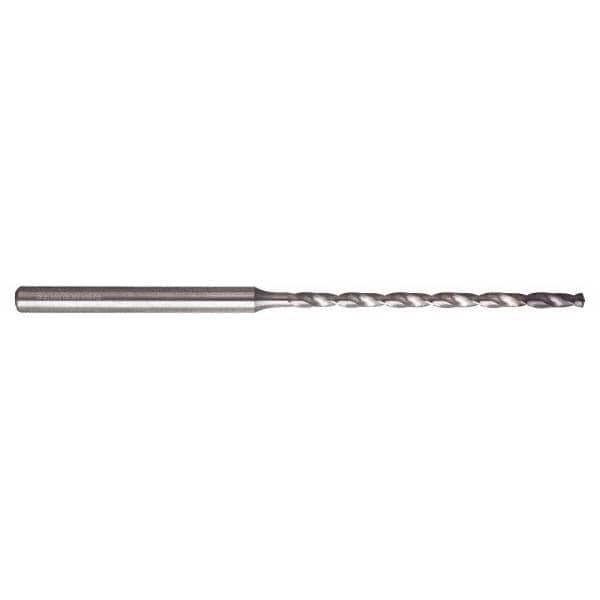

Brand: Guhring / Part #: 9064120024000
Item #: 63897110
Brand: Guhring
Model #: 9064120024000
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0945 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 44.00 |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Drill Point Angle | 135 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 41.60 |
| Series | 6412 |
| Overall Length (mm) | 78.00 |
| Shank Type | Straight-Cylindrical |
| Point Type | Faceted |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | h7 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Aluminum; Titanium Alloy |
| Secondary Workpiece Material Code | S; N |
| Shank Diameter (mm) | 4.00 |
| Shank Length (mm) | 31.00 |
| Flute By Diameter Ratio | 15xD |
| Material Grade | Submicron |
| Drill Bit Grade | High Performance |
