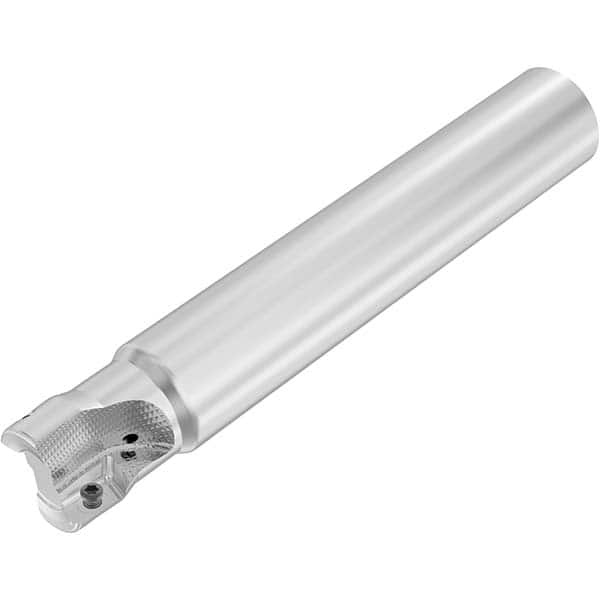

Seco - Indexable Square-Shoulder End Mills Cutting Diameter (Decimal Inch): 1.0000 Cutting Diameter (Inch): 1
Item #: 18139733
Brand: Seco
Model #: 03336134
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 1.0000 ; Cutting Diameter (Inch): 1 ; Shank Type: Cylindrical ; Shank Diameter (Decimal Inch): 1.0000 ; Overall Length/Projection (mm): 170.00 ; Lead Angle: 90
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (mm) | 170.00 |
| Lead Angle | 90 |
| Series | R217.69 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 15.00 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Inch) | 1 |
| Head Length (mm) | 35.00 |
| Weldon Flat | No |
| Insert Compatibility | XOEX; XOMX |
| Shank Length (mm) | 135.000 |
| Maximum RPM | 16600.000 |
| Toolholder Material | Steel |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Series | R217.69 |
| Lead Angle | 90 |
| Insert Compatibility | XOEX; XOMX |
| Insert Holding Method | Screw |
