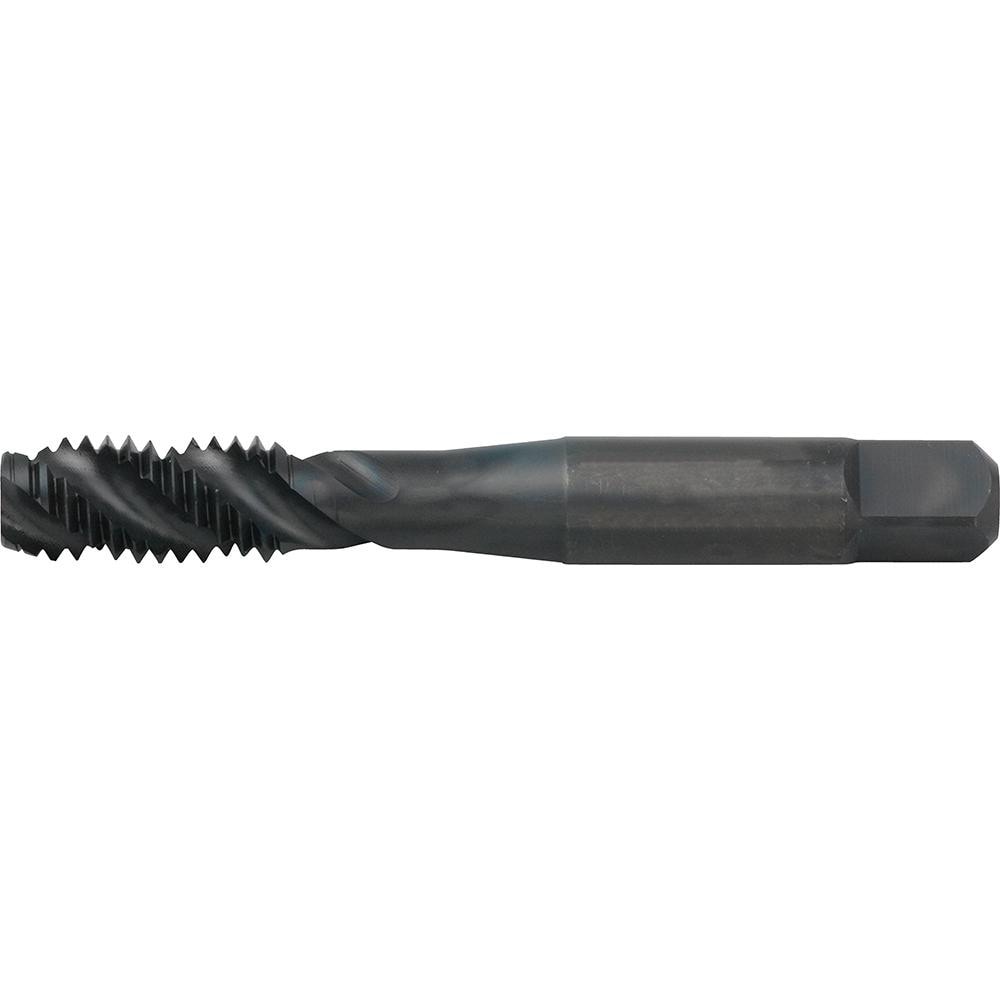

Brand: Widia / Part #: 5390223
Item #: 97636633
Brand: Widia
Model #: 5390223
Product Specifications
| Thread Size (Inch) | #6-40 |
| Chamfer | Bottoming |
| Thread Limit | H3 |
| Class Of Fit | 2B |
| Number Of Flutes | 2 |
| Material | High Speed Steel |
| Threads per Inch | 40 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Oxide |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.3700 |
| Overall Length (Decimal Inch) | 1.9900 |
| Thread Depth (Decimal Inch) | 0.7100 |
| Thread Pitch (Decimal Inch) | 0.0250 |
| Thread Standard | UNF |
| Material Grade | WP49EG |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Size (Decimal Inch) | 0.1060 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
