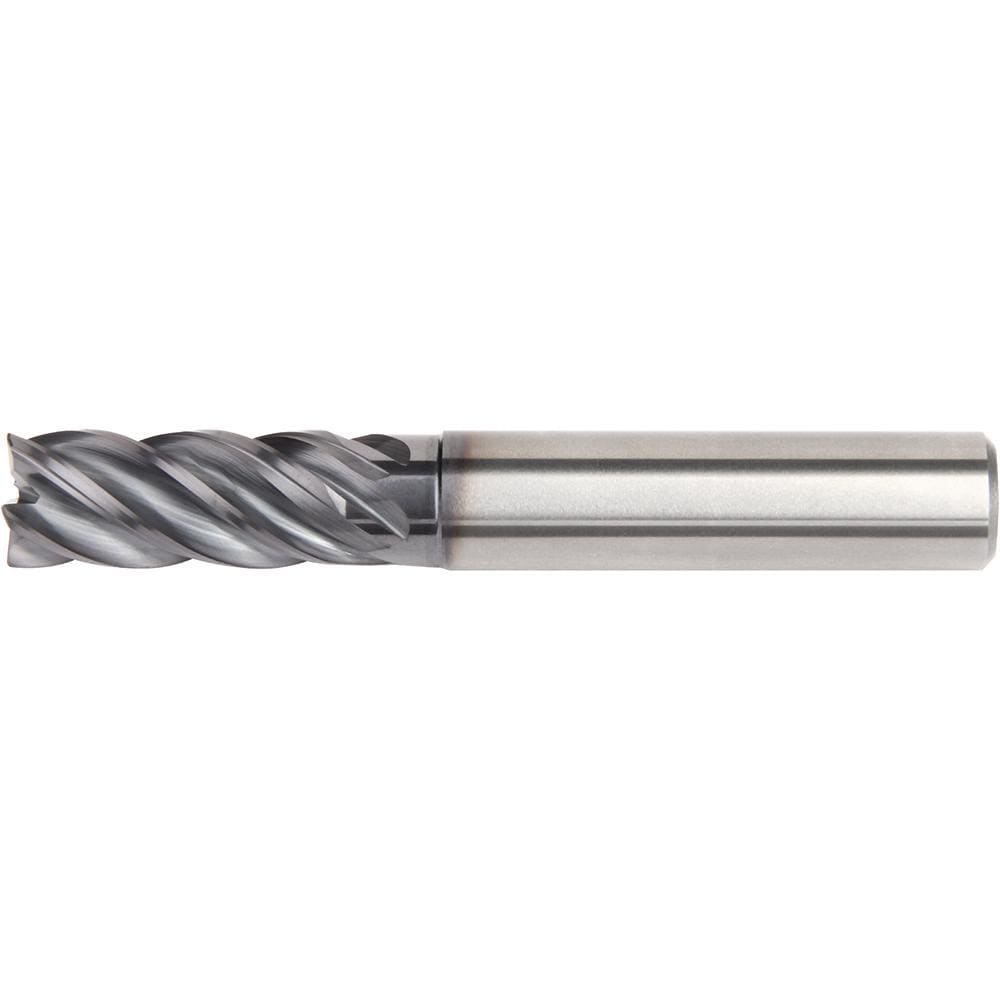

Brand: Widia / Part #: 6569498

Brand: Widia / Part #: 6569498


Item #: 33973538
Brand: Widia
Model #: 6569498

Product Specifications

Mill Diameter (mm) 20.00
Coating/Finish AlTiN
End Mill Material Solid Carbide
Number Of Flutes 5
Overall Length (mm) 115.00
Length of Cut (mm) 38.00
Cutting Direction Right Hand
Flute Direction Right Hand
Chipbreaker No
Length Type Regular
Flute Type Helical
Extended Reach Yes
Shank Type Straight-Cylindrical
Centercutting Yes
Material Removal Type Finishing
Neck Diameter (mm) 18.80
Minimum Helix Angle 38.00
Maximum Helix Angle 38.00
Primary Workpiece Material Hard Material; High Temperature Alloy; Steel
Primary Workpiece Material Code P; S; H
Secondary Workpiece Material Stainless Steel; Cast Iron
Secondary Workpiece Material Code K; M
Material Grade WS15PE
Series 57NC
$345.72
