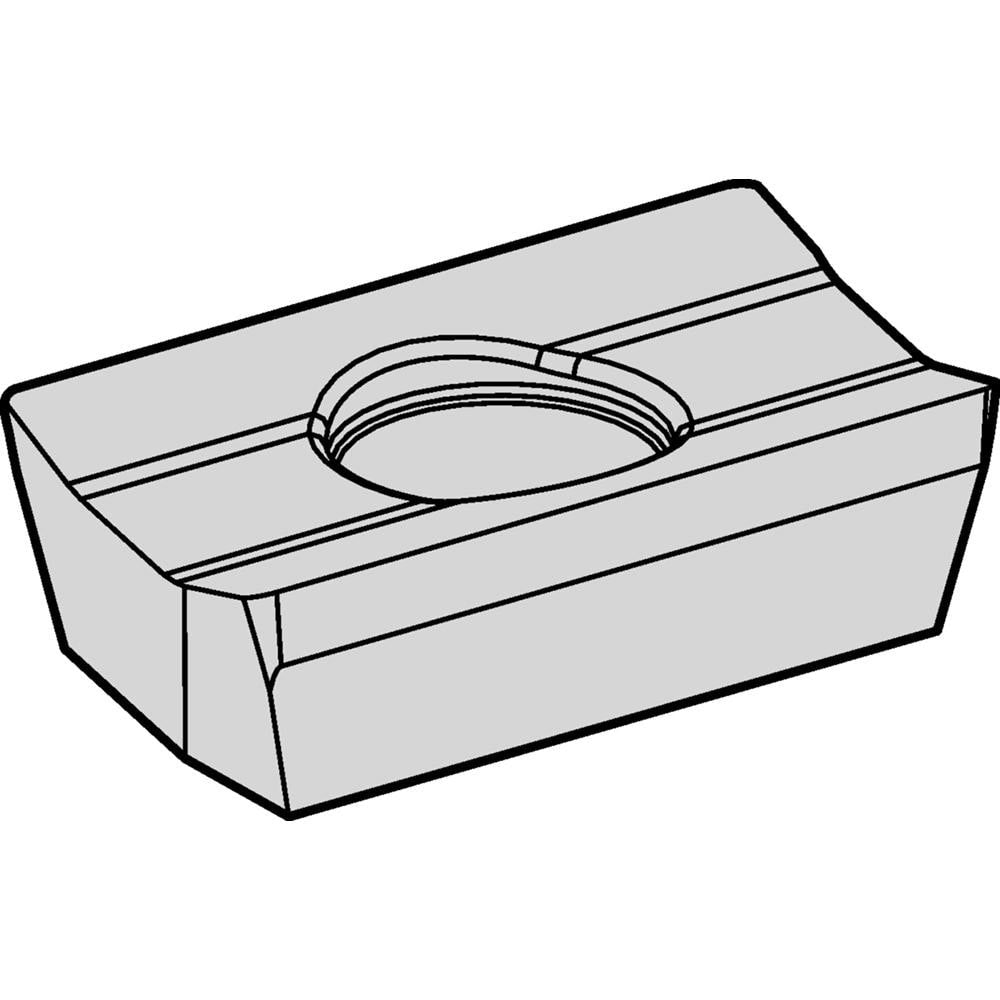

Brand: Widia / Part #: 2031793
Item #: 94044641
Brand: Widia
Model #: 2031793
Product Specifications
| Insert Style | XDHT |
| Insert Size Code | 0903 |
| Insert Size | 22 |
| Insert Material | Carbide |
| Manufacturer Grade | THM |
| Inscribed Circle (Decimal Inch) | 0.2642 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Relief Angle | 15.000 |
| Series | M680 |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.3724 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | XDHT222AL |
| Iso Code | XDHT090308AL |
| Manufacturers Catalog Number | XDHT222AL |
| Cutter Series Compatibility | M680 |
| Chip Breaker | AL |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.2642 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1213 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3724 |
