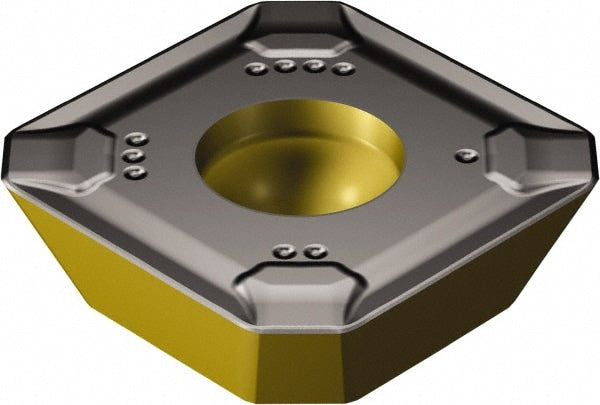

Brand: Sandvik Coromant / Part #: 5743920
Item #: 03640760
Brand: Sandvik Coromant
Model #: 5743920
Product Specifications
| Insert Style | R245 |
| Insert Size | 12T3 |
| Manufacturer Grade | 4230 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.5276 |
| Inscribed Circle (mm) | 13.40 |
| Thickness Range (Decimal Inch) | 0.1500 - 0.1750 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Corner Radius (mm) | 1.50 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 - 0.6000 |
| Insert Hand | Right Hand |
| Coating Process | MTCVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.2559 |
| Maximum Depth of Cut (mm) | 6.50 |
| Rake | Positive |
| Rake Angle | 15 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R245-12 T3 M-PM 4230 |
| Shape | Square |
| Thickness (mm) | 3.97 |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length | 10.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
