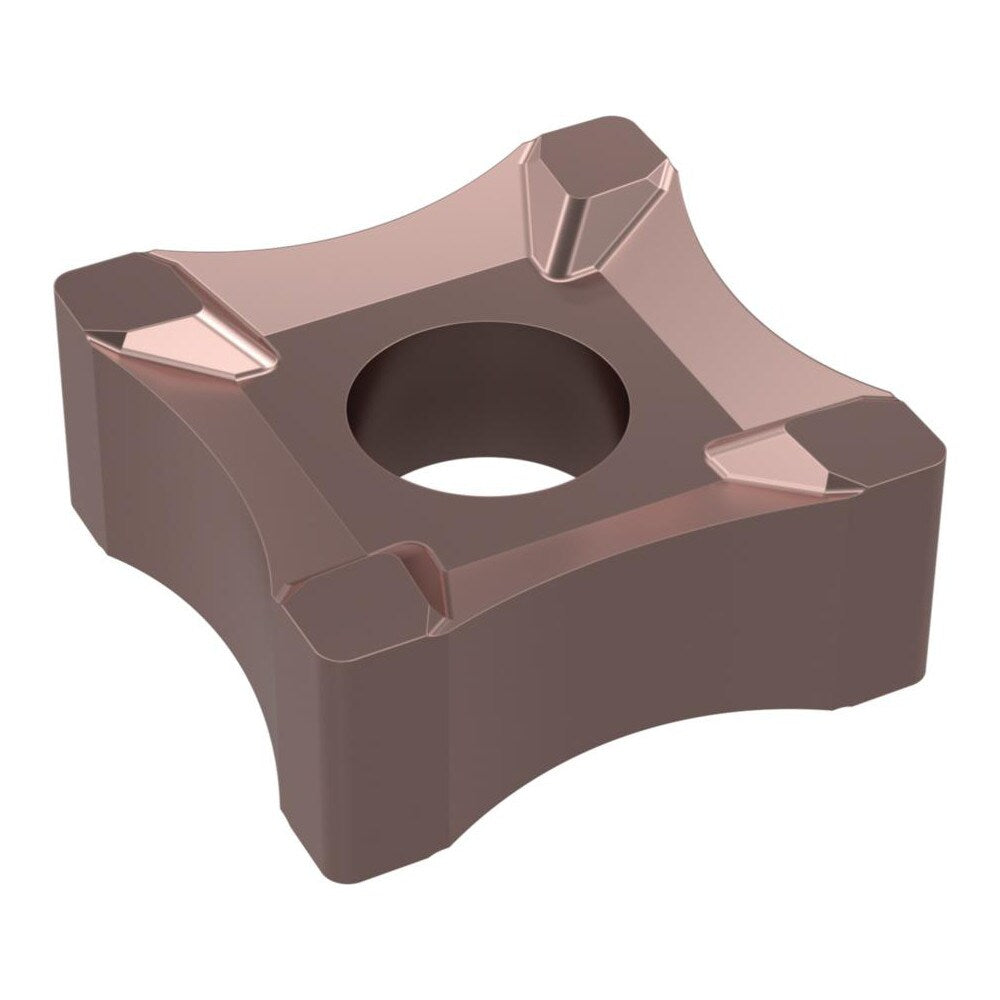

Brand: Widia / Part #: 6657867

Brand: Widia / Part #: 6657867


Item #: 95161154
Brand: Widia
Model #: 6657867

Product Specifications

Insert Style SNMX
Insert Shape Code S
Insert Size Code 1907
Insert Shape Square
Coating/Finish TiCN; TiN; ZrCN; Al2O3
Manufacturer Grade WP25CT
Corner Radius (Decimal Inch) 1.9685
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.3169
Maximum Depth of Cut (Decimal Inch) 0.3750
Inscribed Circle (Decimal Inch) 0.7500
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.3150
Clearance Code N
Tolerance Code M
Included Angle 90.00
Relief Angle 0.000
Series SNMX
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.7500
Number Of Cutting Edges 8
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Ansi Code SNMX1907R50
Iso Code SNMX1907R50
Manufacturers Catalog Number SNMX1907R50
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker 19
Style SNMX
Width (Decimal Inch - 4 Decimals) 0.7500
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$17.60
