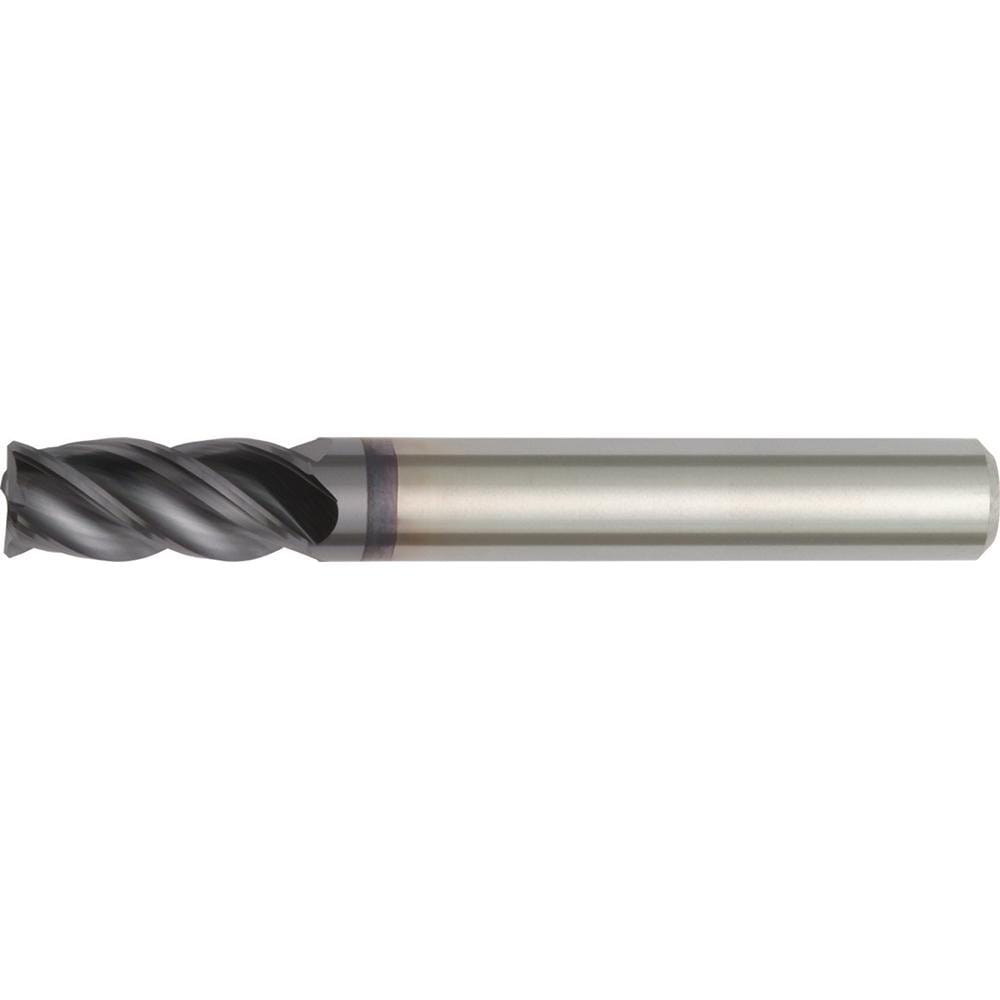

Brand: Widia / Part #: 1920427
Item #: 34047035
Brand: Widia
Model #: 1920427
Product Specifications
| Mill Diameter (mm) | 5.00 |
| Chamfer Width (mm) | 0.40 |
| Coating/Finish | TiAlN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Overall Length (mm) | 57.00 |
| Length of Cut (mm) | 13.00 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Flute Direction | Right Hand |
| Chipbreaker | No |
| End Type | Single |
| Chamfer Angle | 45 |
| Length Type | Regular |
| Flute Type | Variable |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 6.0000 |
| Shank Diameter (Inch) | 6 |
| Reach Length (mm) | 13.00 |
| Minimum Helix Angle | 38.00 |
| Maximum Helix Angle | 38.00 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K; M |
| Secondary Workpiece Material | High Temperature Alloy |
| Secondary Workpiece Material Code | S |
| Material Grade | TiAlN-LT |
| Series | 4777 |
