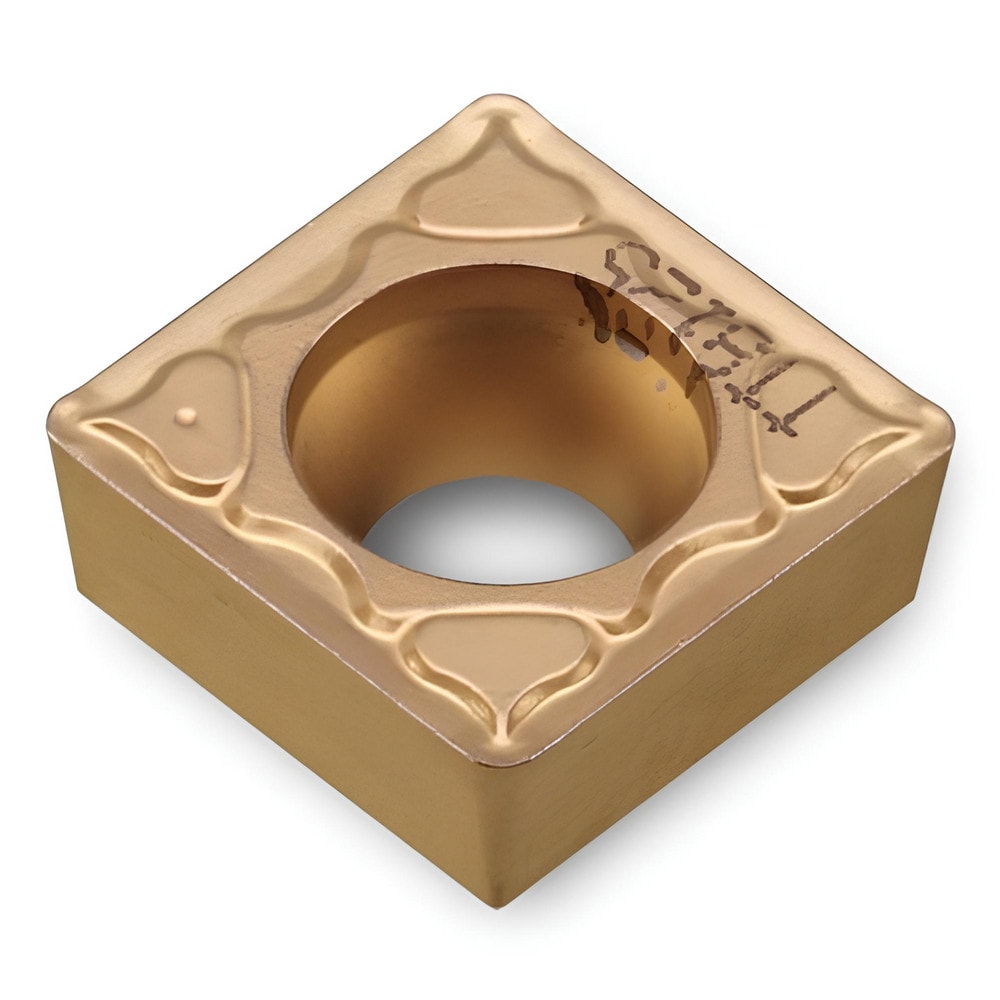

Brand: Ingersoll Cutting Tools / Part #: 5750053
Item #: 98888217
Brand: Ingersoll Cutting Tools
Model #: 5750053
Product Specifications
| Insert Style | SCMT |
| Insert Shape Code | S |
| Insert Size Code | 32.52 |
| Insert Shape | Square |
| Coating/Finish | Uncoated |
| Manufacturer Grade | CT3000 |
| Corner Radius (Inch) | 1/32 |
| Insert Material | Cermet |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Clearance Code | C |
| Tolerance Code | M |
| Included Angle | 90.00 |
| Relief Angle | 7.000 |
| Series | SCMT |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Inch) | 3/8 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Ansi Code | SCMT32.52 |
| Iso Code | SCMT09T308 |
| Cutting Direction | Neutral |
| Coating Classification | Uncoated |
| Chip Breaker | PC |
| Rake Angle | 6 |
| Cutting Edge Style | Chamfered & Honed |
| Style | SCMT |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning |
