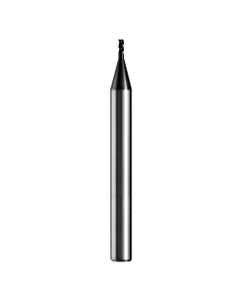

05325 1.0 3F 0.1R ENDMILL
Item #: DD9005325
Brand: KYOCERA SGS Precision Tools
Model #: 05325
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1 mm |
| Neck Diameter (DN) | 0.037″ |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 3 mm |
| Flute Type | Spiral |
| Overall Length (OAL) | 63.5 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | AlTiN |
| Series/List # | M032 |
| Flute Count (NOF) | 3 |
| Shank Size (SS) | 0.2362″ |
| Flute Helix Angle (FHA) | 45 Degrees |
| Shank Length (LS) | 2.382″ |
| Shank Type | Round |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.0039″ |
| End Shape | Corner Radius |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 0.1181″ |
| Single / Double End | Single End |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
| Center Cutting | Yes |
| Corner Radius (RE) | 0.0039″ |
