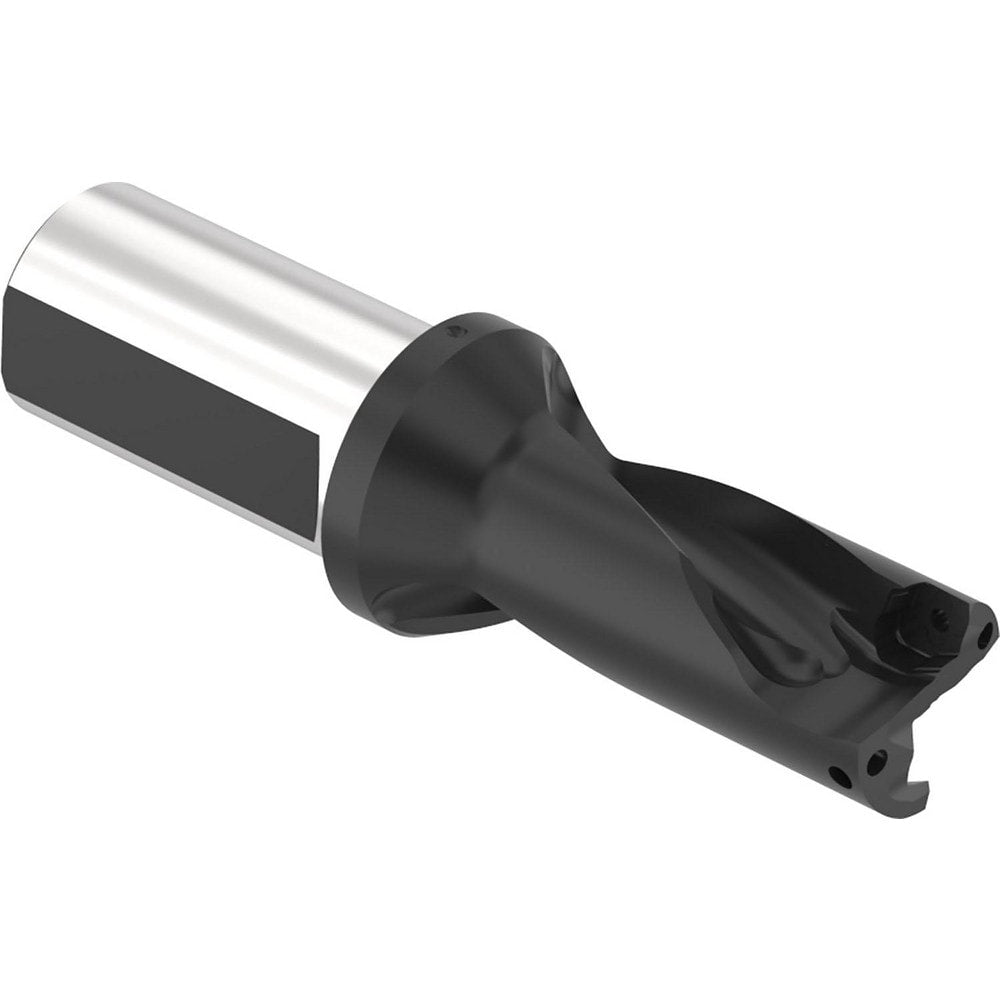

Brand: Allied Machine and Engineering / Part #: D2091187I-125F
Item #: 98864408
Brand: Allied Machine and Engineering
Model #: D2091187I-125F
Product Specifications
| Drill Style | D209 |
| Maximum Drill Diameter (Inch) | 1-3/16 |
| Maximum Drill Diameter (Decimal Inch) | 1.1870 |
| Drill Diameter (Inch) | 1-3/16 |
| Maximum Drill Depth (Decimal Inch) | 2.3740 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.25 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Compatible Insert Style | IC |
| Compatible Insert Size Code | 09 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 5.5787 |
| Series | 4TEX |
| Flute Length (Decimal Inch) | 3.2559 |
| Shank Length (Decimal Inch) | 2.3230 |
| Shank Length (mm) | 59.000 |
| Minimum Drilling Diameter (Decimal Inch) | 1.1870 |
| Coolant Through | Yes |
