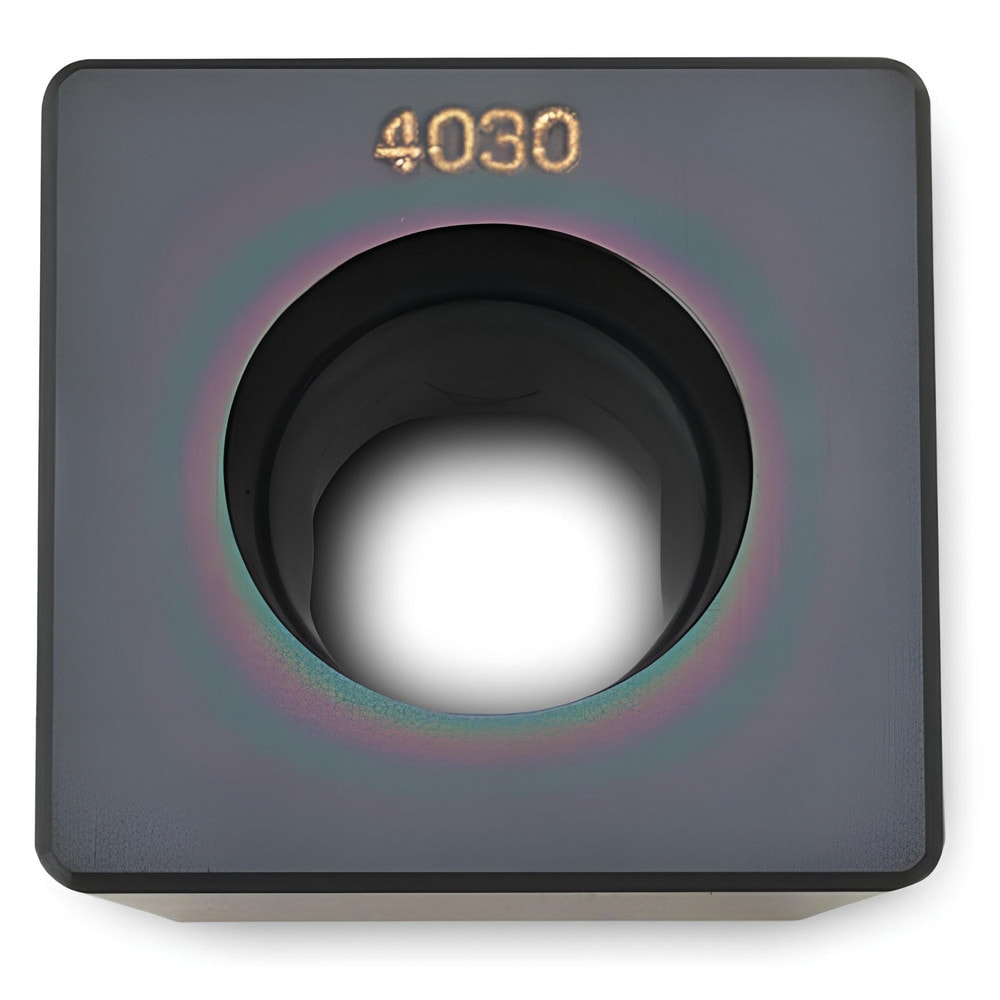

Brand: Ingersoll Cutting Tools / Part #: 2904166
Item #: 98529258
Brand: Ingersoll Cutting Tools
Model #: 2904166
Product Specifications
| Insert Style | SDES |
| Insert Size Code | 130508 |
| Insert Size | 13 |
| Insert Material | Carbide |
| Material Grade | Coarse Grain |
| Manufacturer Grade | IN4030 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Insert Hand | Neutral |
| Series | SDES |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.4808 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4808 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | SDES130508N-PF K |
| Iso Code | SDES130508N-PF K |
| Cutter Series Compatibility | 5J5P; QHU |
| Chip Breaker | PF |
| Cutting Direction | Neutral |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlCrO; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5118 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5118 |
