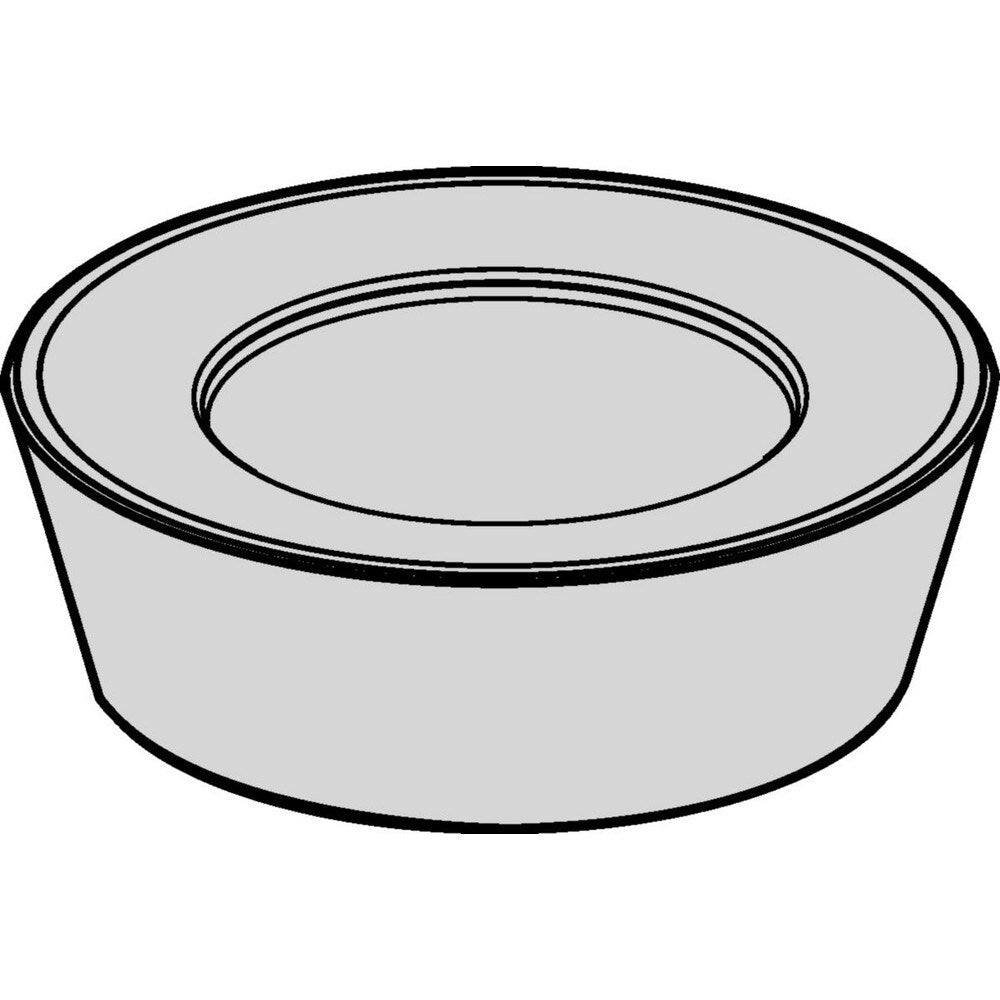

Brand: Widia / Part #: 3959582

Brand: Widia / Part #: 3959582


Item #: 94039211
Brand: Widia
Model #: 3959582

Product Specifications

Insert Style RDPX
Insert Size Code 1003
Insert Size 10
Insert Material Carbide
Manufacturer Grade TN6540
Thickness (Inch) 1/8
Inscribed Circle (Decimal Inch) 0.3937
Inscribed Circle (mm) 10.00
Corner Radius (Decimal Inch) 0.1969
Corner Radius (mm) 5.00
Insert Hand Neutral
Relief Angle 15.000
Series M170
Coating Process PVD
Hole Diameter (Decimal Inch) 0.1535
Maximum Depth of Cut (Decimal Inch) 0.1969
Number Of Cutting Edges 1
Insert Shape Round
Rake Positive
Primary Workpiece Material Super-alloys & Titanium
Primary Workpiece Material Code S
Secondary Workpiece Material Stainless Steel; Cast Iron; Steel
Secondary Workpiece Material Code P; K; M
Ansi Code RDPX1003M0SNMM
Iso Code RDPX1003M0SNMM
Manufacturers Catalog Number RDPX1003M0SNMM
Cutter Series Compatibility M170 RD1003 IN
Chip Breaker MM
Cutting Direction Neutral
Material Application High-Temperature Alloy; Stainless Steel; Steel
Shape Round
Length of Cut (mm) 5.0000
Insert Holding Method Screw
Coating Classification PVD
Single or Double Sided Insert Single
Coating/Finish TiAlN
Length 10.00
Width (Decimal Inch - 4 Decimals) 0.3937
Width (Mm - 2 Decimals) 10.00
Thickness (Decimal Inch - 4 Decimals) 0.1250
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.3937
$9.10
