Brand: Widia / Part #: 2028579

Brand: Widia / Part #: 2028579


Item #: 95170825
Brand: Widia
Model #: 2028579

Product Specifications

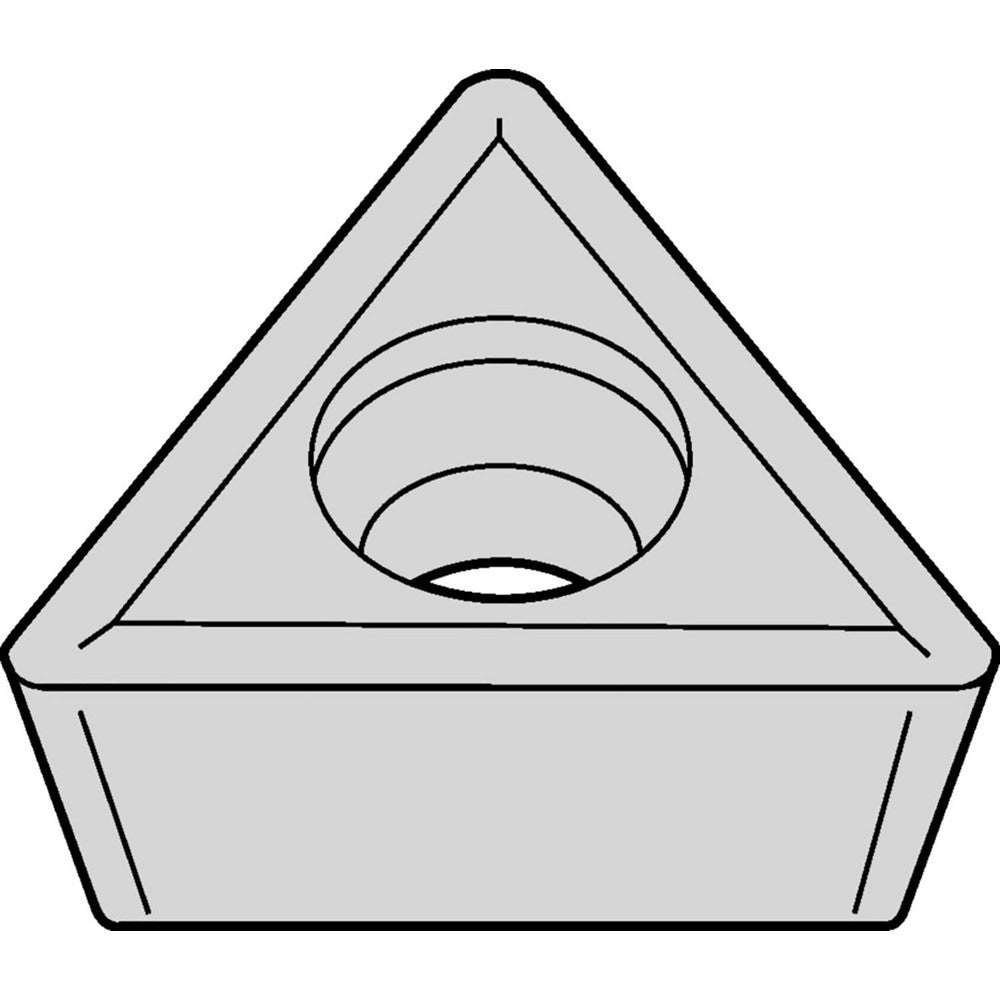

Insert Style TCMT
Insert Shape Code T
Insert Size Code 21505
Insert Shape Triangle
Coating/Finish Uncoated
Manufacturer Grade THM
Corner Radius (Decimal Inch) 0.0079
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1102
Maximum Depth of Cut (Decimal Inch) 0.1250
Inscribed Circle (Decimal Inch) 0.2500
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.0937
Clearance Code C
Tolerance Code M
Included Angle 60.00
Relief Angle 7.000
Series TCMT
Coating Process Uncoated
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.4331
Number Of Cutting Edges 3
Primary Workpiece Material Super-alloys & Titanium
Primary Workpiece Material Code S
Secondary Workpiece Material Non-Ferrous Metal
Secondary Workpiece Material Code N
Iso Code TCMT110202
Cutting Direction Neutral
Coating Classification Uncoated
Chip Breaker None
Style TCMT
Width (Decimal Inch - 4 Decimals) 0.2500
Multi-Use Tool No
Full Radius No
Multi-Use Application Turning
