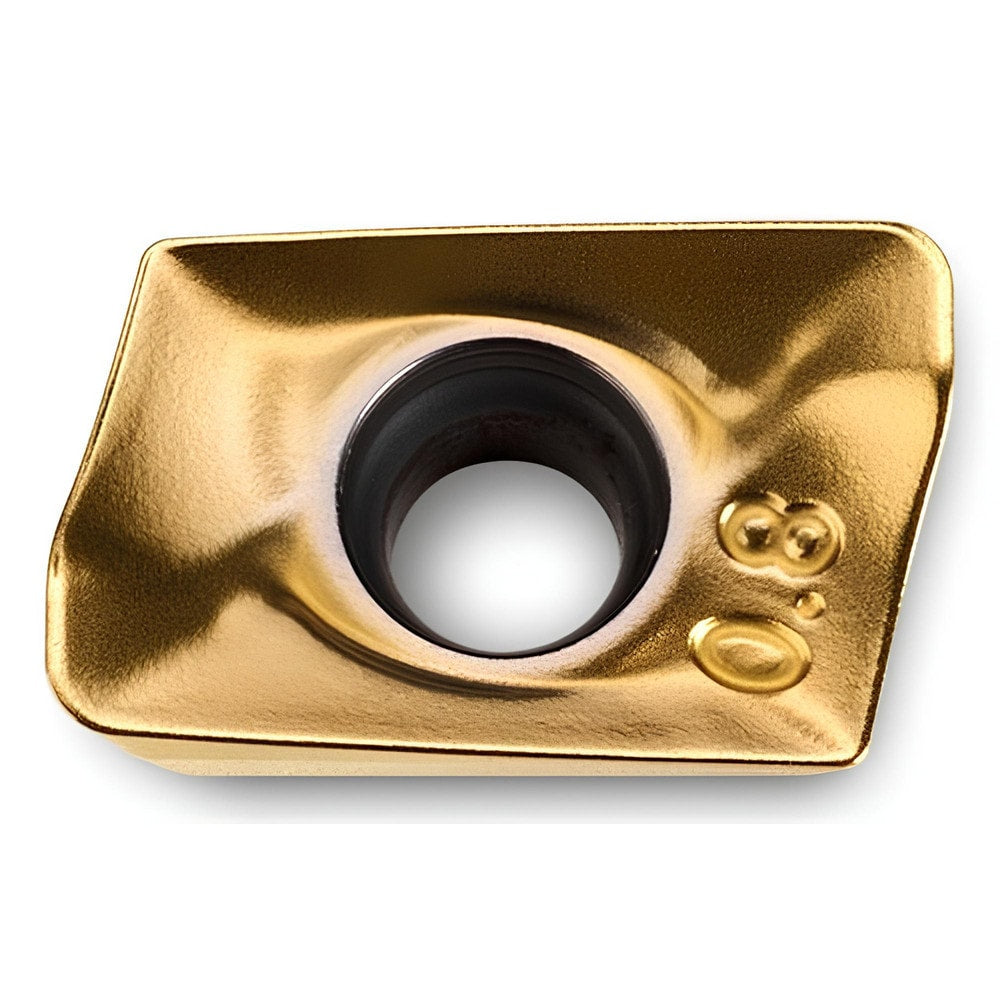

Brand: Ingersoll Cutting Tools / Part #: 6154079

Brand: Ingersoll Cutting Tools / Part #: 6154079


Item #: 67304063
Brand: Ingersoll Cutting Tools
Model #: 6154079

Product Specifications

Insert Style BOMT
Insert Size Code 09T308
Insert Material Carbide
Manufacturer Grade IN2504
Length (Inch) 27/64
Inscribed Circle (Decimal Inch) 0.2590
Corner Radius (Inch) 1/32
Insert Hand Right Hand
Series BOMT
Coating Process PVD
Maximum Depth of Cut (Decimal Inch) 0.3500
Number Of Cutting Edges 2
Insert Shape Parallelogram
Rake Positive
Primary Workpiece Material Hard Material; Cast Iron; Steel
Primary Workpiece Material Code P; H; K
Ansi Code BOMT09T308R
Manufacturers Catalog Number BOMT09T308R IN2504
Cutter Series Compatibility 12L1P; 2J1P; 12J1P; 22J3P
Chip Breaker None
Cutting Direction Right Hand
Shape Parallelogram
Length of Cut (mm) 8.8900
Insert Holding Method Screw
Coating Classification PVD
Single or Double Sided Insert Single
Coating/Finish TiN; TiAlN
Included Angle Degree 90
Width (Decimal Inch - 4 Decimals) 0.2590
Thickness (Decimal Inch - 4 Decimals) 0.1480
Multi-Use Tool Yes
$18.12
