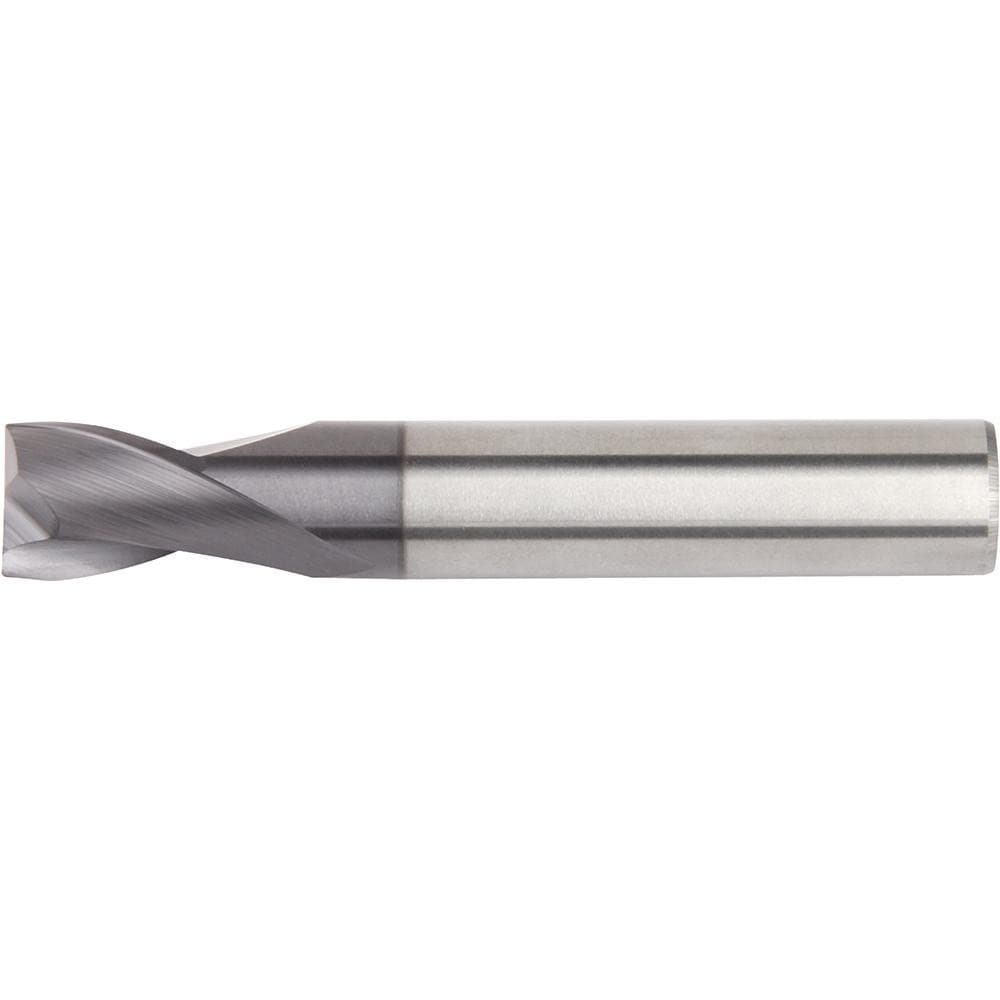

Brand: Widia / Part #: 5877506

Brand: Widia / Part #: 5877506


Item #: 33980509
Brand: Widia
Model #: 5877506

Product Specifications

Mill Diameter (mm) 4.00
Chamfer Width (mm) 0.10
Coating/Finish TiAlN
End Mill Material Solid Carbide
Number Of Flutes 2
Single Or Double End Single
Overall Length (mm) 54.00
Length of Cut (mm) 5.00
Cutting Direction Right Hand
Coolant Through No
Flute Direction Right Hand
Chipbreaker No
End Type Single
Chamfer Angle 45
Length Type Regular
Flute Type Helical
Extended Reach No
Shank Type Straight-Cylindrical
Centercutting Yes
Material Removal Type Finishing
Shank Diameter (Decimal Inch) 0.2362
Reach Length (mm) 12.77
Minimum Helix Angle 30.00
Maximum Helix Angle 30.00
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Stainless Steel; Cast Iron
Secondary Workpiece Material Code K; M
Series D002
$23.39
