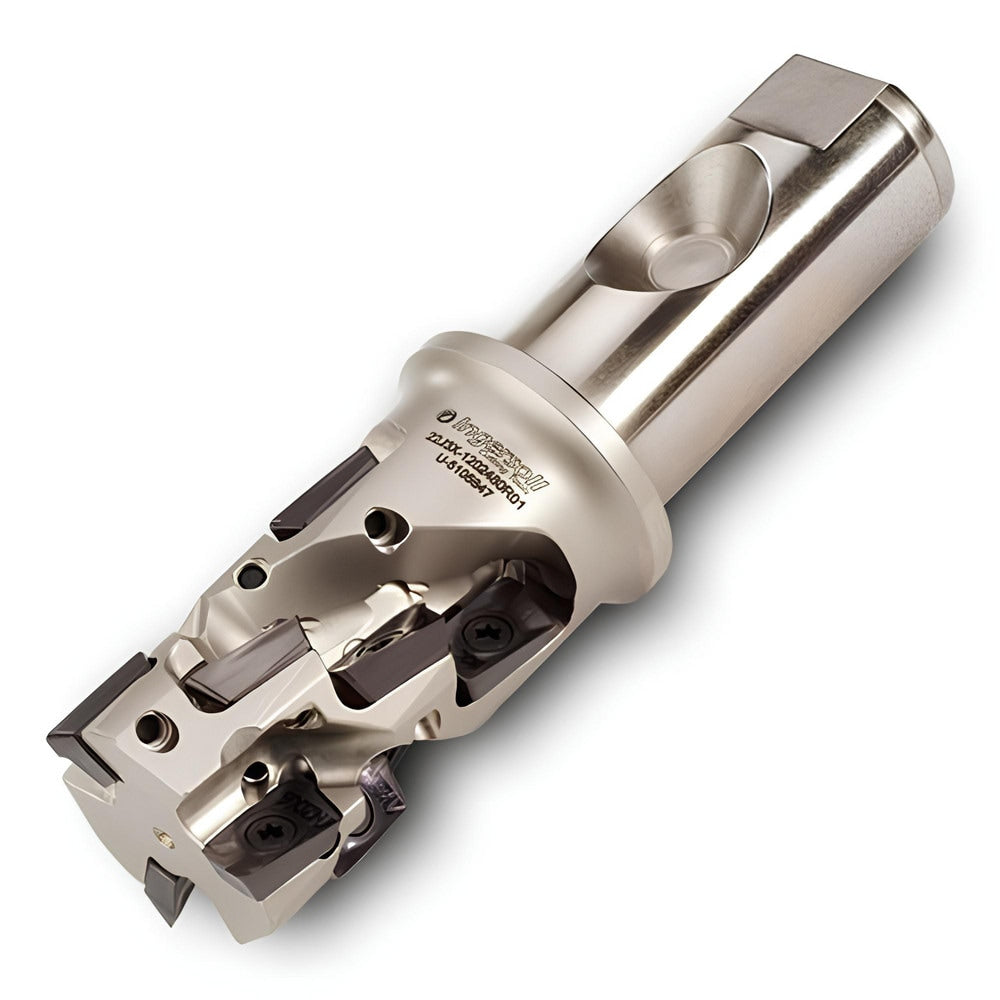

Brand: Ingersoll Cutting Tools / Part #: 3024815
Item #: 96743547
Brand: Ingersoll Cutting Tools
Model #: 3024815
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Minimum Cutting Diameter (Inch) | 1 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (mm) | 55.88 |
| Maximum Depth of Cut (Decimal Inch) | 2.2000 |
| Cutter Style | 22J3X |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Maximum Ramping Angle | 0 ? |
| Insert Holding Method | Screw |
| Overall Length (mm) | 127.0000 |
| Overall Length (Decimal Inch) | 5.0000 |
| Tool Material | Steel |
| Series | 22J3X |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.3000 |
| Shank Length (mm) | 58.420 |
| Head Length (Decimal Inch) | 2.7000 |
| Head Length (mm) | 68.58 |
| Tool Application | Facing; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Rake | Positive |
| Complete Insert Compatibility | ZOMT1204..; AOxT1204.. |
| Insert Compatibility | ZOMT1204..; AOxT1204.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| Manufacturers Catalog Number | 22J3X-1002780R01 |
| Usable Length (mm) | 66.040 |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 2.6000 |
| Number Of Cutter Inserts | 10 |
| Coolant Through | No |
