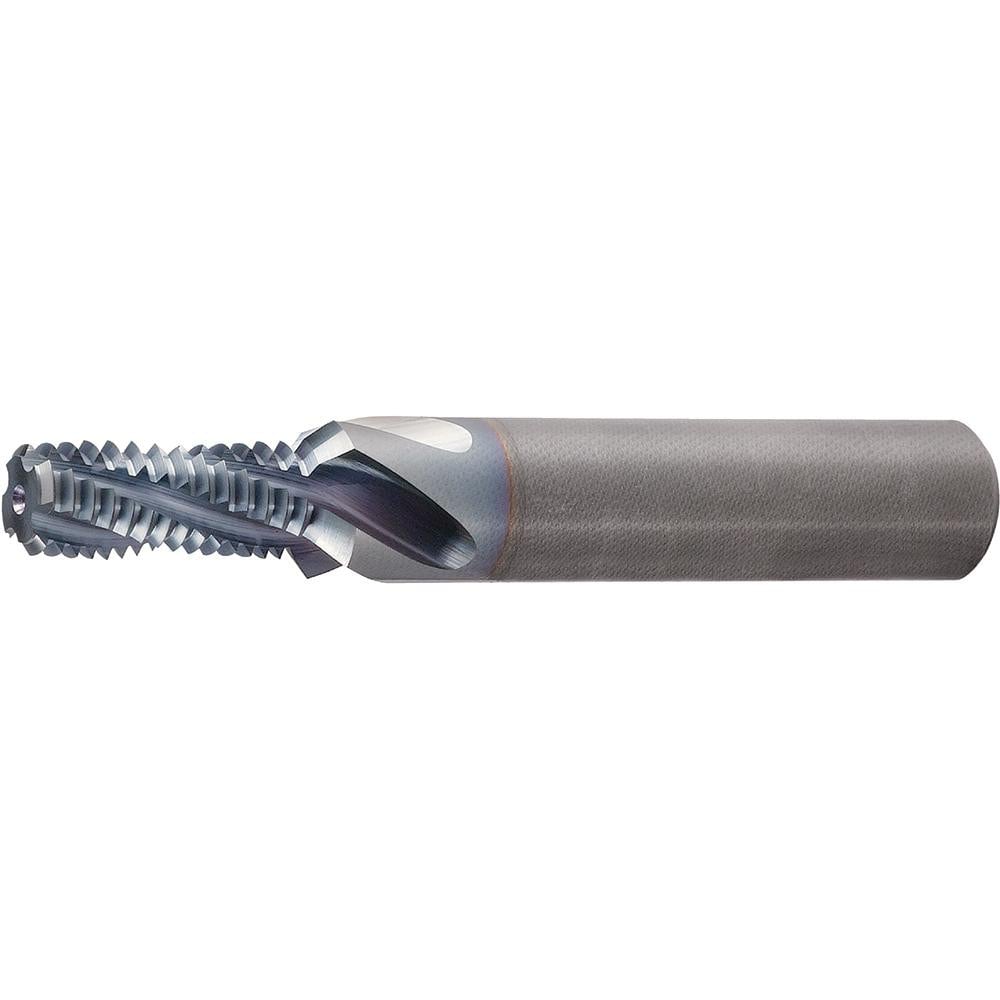

Brand: Widia / Part #: 4138536
Item #: 00150292
Brand: Widia
Model #: 4138536
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 5/8-11 |
| Thread Depth | 1.3200 |
| Thread Depth (Decimal Inch) | 1.3200 |
| Thread Type | UNC; UNF |
| Shank Diameter (mm) | 18.0000 |
| Cutting Diameter (mm) | 13.10 |
| Shank Type | Cylindrical |
| Minimum Nominal Diameter (Decimal Inch) | 0.5313 |
| Shank Length (Decimal Inch) | 1.8890 |
| Overall Length (Decimal Inch) | 4.0150 |
| Thread Standard | UNC |
| Flute Direction | Right Hand |
| Material Grade | WU12PV |
| Series | GTM21 |
| Number Of Flutes | 4 |
| Coating/Finish | TiCN |
| Coolant Through | Yes |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.3200 |
| Teeth Per Inch | 11 |
