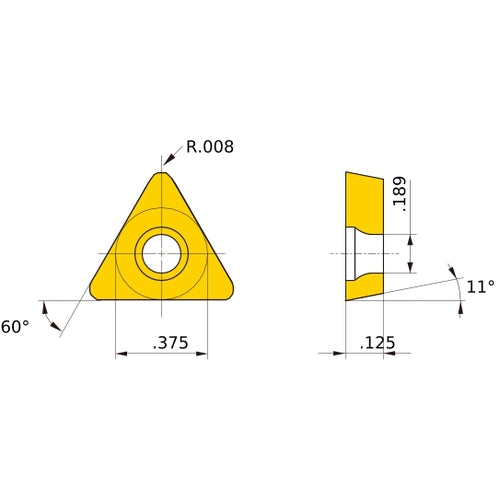

NP-TPMX320.5LF MD220
Item #: MB04386249
Brand: Mitsubishi Materials USA
Model #: 386249
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Fixing Hole Diameter (D1) | 4.8 mm |
| Insert Style | TPMX |
| Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.2 mm |
| Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 3.18 mm |
| Chip Breaker Type | L-F |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 60 Degrees |
| Shape | Triangle |
| Cutting Edge Material | PCD |
| Series/List # | MD220 |
| Grade | MD220 |
| Cutting Edge Effective Length (LE) | 1.5 mm |
