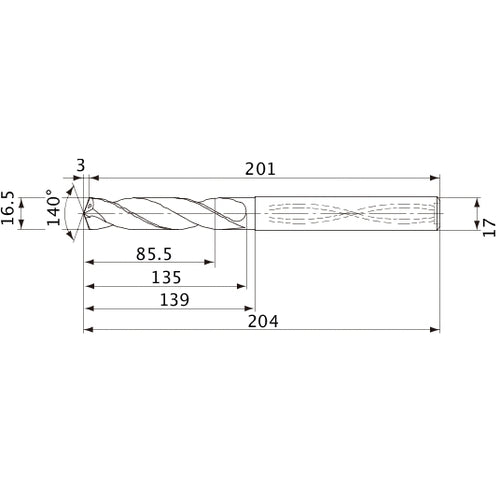

MVS1650X05S170 DP1020 16.5 mm Dia. × 17 mm Shank × 135 mm Flute Length × 204 mm OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB03698630
Brand: Mitsubishi Materials USA
Model #: 698630
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 16.5 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 16.5 mm |
| Cutting Edge Material | Carbide |
| Length Group | 5xD |
| Grade | DP1020 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 17 mm |
| Series/List # | MVS |
| Head Length (LH) | 139 mm |
| Usable Length (LU) | 85.5 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 135 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 204 mm |
| Point Length (PL) | 3 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 201 mm |
| Feature | New grade DP1020 offers long tool life for a wide range of work materials.,Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6) |
