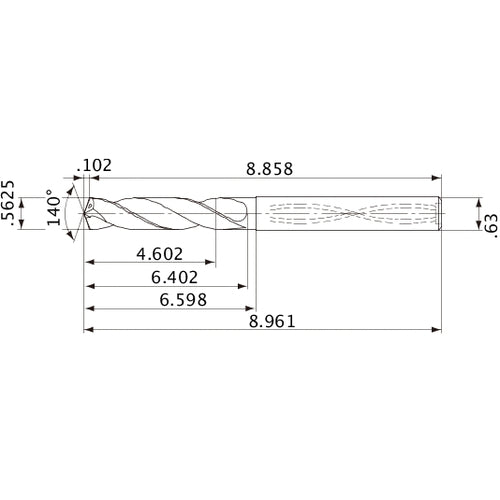

MVS1429X08S160 DP1020 9/16″ Dia. × 0.63″ Shank × 6.402″ Flute Length × 8.961″ OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB03694305
Brand: Mitsubishi Materials USA
Model #: 694305
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 9/16″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/16″ |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5625″ |
| Grade | DP1020 |
| Length Group | 8xD |
| Measurement Type | Inch |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Series/List # | MVS_INCH |
| Connection Diameter Machine Side (DCONMS) | 0.63″ |
| Usable Length (LU) | 4.602″ |
| Head Length (LH) | 6.598″ |
| Length Chip Flute (LCF) | 6.402″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 8.961″ |
| Point Angle (SIG) | 140 Degrees |
| Flute Count (NOF) | 2 |
| Point Length (PL) | 0.102″ |
| Feature | New grade DP1020 offers long tool life for a wide range of work materials.,Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6) |
| Functional Length (LF) | 8.858″ |
